SmartSolar MPPT 75/15 * 220W@12V max. PV-power Solar Charge Controller
EAN/GTIN: 871907604080
OEM: SCC075015060R
1 / 5
Main
Where to Buy
Related Products
Product Details (31)
Description

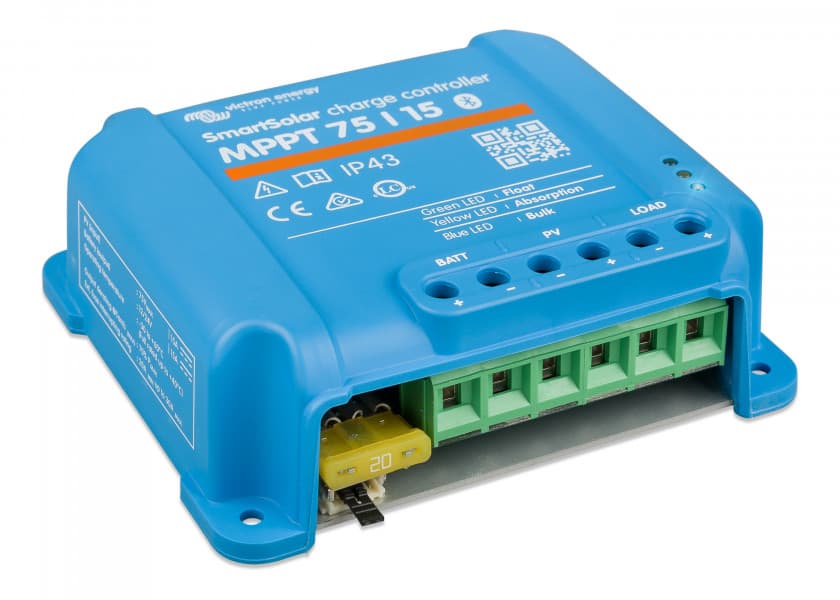

VICTRON - SmartSolar MPPT 75/15 solar charge controller
Solar regulator type
MPPT
Charging outputs
1
Nominal Power @ 12 V
220 W
Operating voltage
12 V, 24 V
Battery type
Lead-Acid, AGM, Gel, Lithium (LifePO4)
Bluetooth
Yes
Max. charging current
15 A
Max. PV open-circuit voltage
75 V
Data protocol
VE.Direct
Protection from
Not specified
Battery voltage
12/24 V
Rated charge current
15 A
Nominal PV power
12 V: 220 W24 V: 440 W
Maximum open circuit PV voltage
75 V
Operating temperature
-30 to +60° C
Automatic load cut-off
Yes
Maximum efficiency
98%
Self-consumption
12 V: 25 mA24 V: 15 mA
Charge voltage 'absorption'
14.4 V / 28.8 V
Charge voltage 'float'
13.8 V / 27.6 V
Charge algorithm
Multistage, adaptive
load current
15 A
Protection
Reverse polarity on battery (fuse)Output short circuitOvertemperature
Power terminals
6 mm²
Protection category
IP43 (electronic components)IP22 (connection area)
Height
100
Width
113
Depth
40
Weight:
0.5 kg
Standards
EN/IEC 62109-1, UL 1741, CSA C22.2
