MoonRay 320 MPPT Solar Charge Controller / 320W@12V max. PV power
OEM: MOONRAY320
1 / 7
Main
Where to Buy
Related Products
Product Details (26)
Description

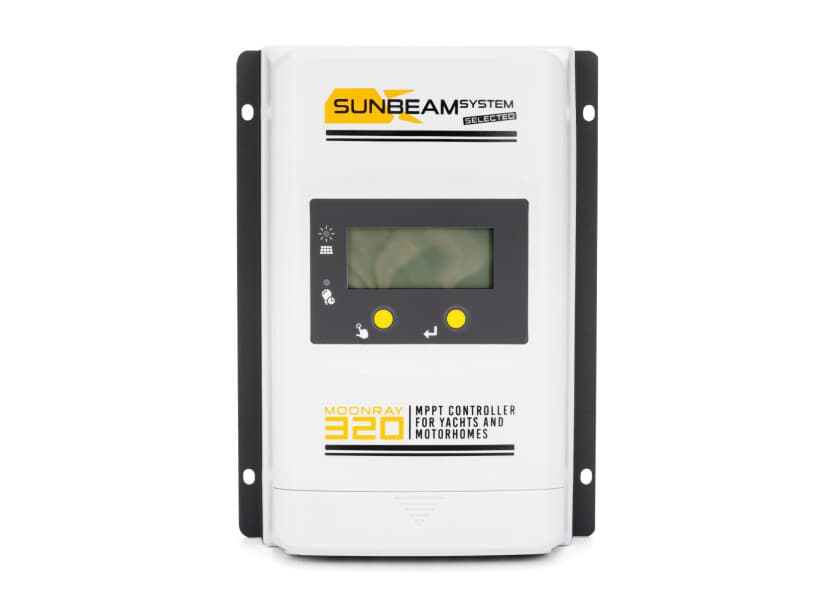

SUNBEAM - MoonRay 320 MPPT solar charge controller
Solar regulator type
MPPT
Charging outputs
1
Nominal Power @ 12 V
320 W
Operating voltage
12 V, 24 V
Battery type
Lead-Acid, AGM, Gel, Lithium (LifePO4)
Bluetooth
No
Max. charging current
20 A
Max. PV open-circuit voltage
45 V
Protection from
Not specified
Battery voltage
12/24 V
Rated charge current
20 A
Nominal PV power
12 V: 320 W24 V: 640 W
Maximum open circuit PV voltage
45 V
Operating temperature
-25 to +50 °C
Maximum efficiency
98.3 %
Self-consumption
14 mA
Charge algorithm
4-stage
load current
20 A
Power terminals
6 mm²
Protection category
IP33 (housing)
Height
217
Width
158
Depth
56.5
Weight
0.96 kg
Standards
EN/IEC 62109-1, EN61000-6-3/EN61000-6-1, 47 CFR Part 15, Subpart B, IEC62509, IEC62321-3-1
