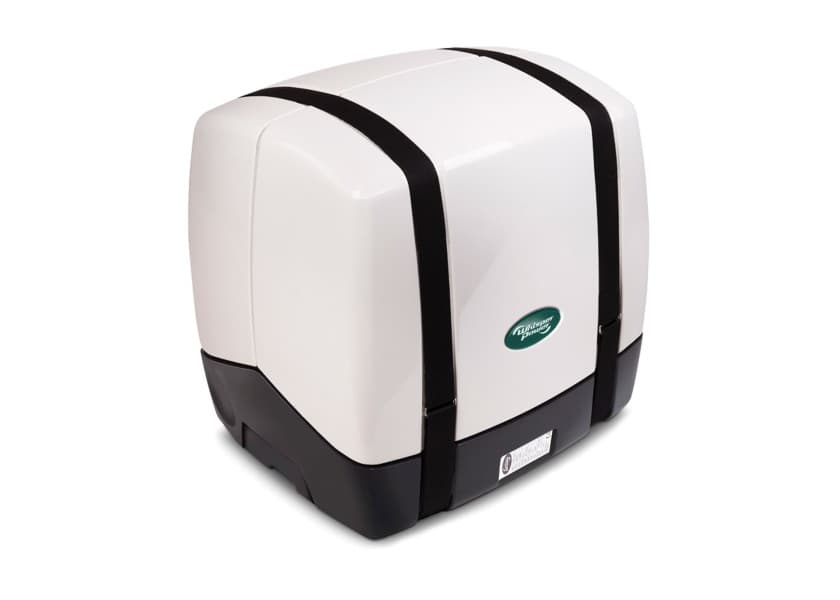

PICCOLO 10 MARINE Diesel Generator / 8.5 kW / manual speed control
OEM: 49009005
1 / 5
Main
Where to Buy
Related Products
Product Details (37)
Description
WHISPER POWER - PICCOLO 10 MARINE
Fuel
Diesel
Continous Power
8000 W
Peak power
8500 W
Output voltage
230 V
Weight
175 kg
Length
740 mm
Width
550 mm
Height
622 mm
Shipping information
Forwarder
Nominal power
8.5 kW
Continuous output
10 kVA / 8 kW
Output voltage/ frequency
230 V / 50 Hz
Noise level
51 dB(A) at 7 m / 60 dB(A) at 1 m
RPM range
2400-2800 rpm / manually adjustable
Generator
Permanent Magnet Alternator (PMA)
Efficiency
94%
Harmonic distortion
< 3%
Peak output for 2 sec
200%
Frequency tolerance
± 0.1%
Motors
Kubota D722
Number of cylinders
3
Capacity
719 cc
Air consumption
1.22 m³/min
Engine cooling
Indirect watercooling
Fuel consumption
1.2 - 3 l/h
Starting
Electrical - 12 Volt
Starter battery
12 V, 80 A (optional)
Battery charger function
Integrated alternator 12 V / 40 A
Depth
740
Genverter dry weight
175 kg (incl. GRP sound insulation)
WM-PMG weight
9.9 kg
Protection category
Motor part / electronic part: IP21
Max. Operating angle
25º in all directions
Wet exhaust
Ø 40 mm
Oil filler neck
Top and side
Included in delivery
Diesel generator,PMG inverter,standard start/stop panel,fuel pump,12 m connection cable
