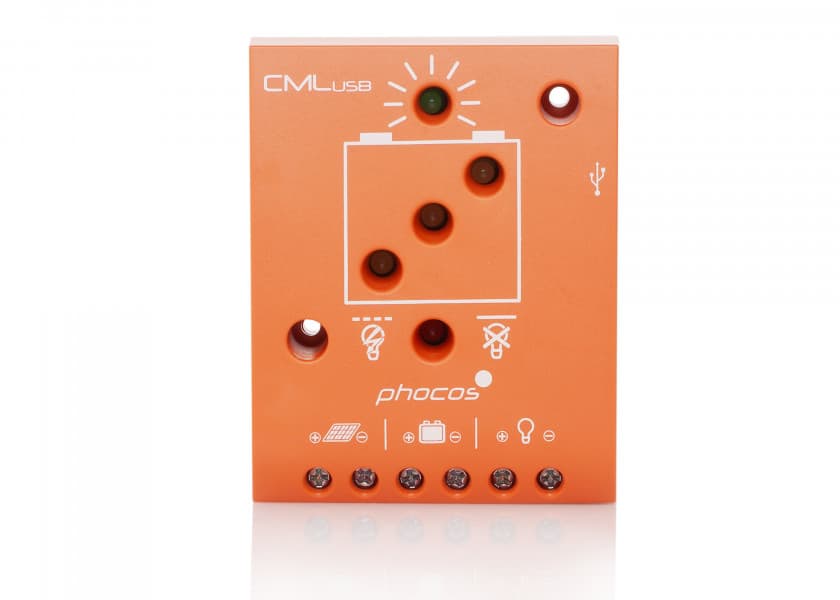

Phocos CML-USB-10 Solar Charge Regulator / PWM
EAN/GTIN: 4260259963174
OEM: 321776
1 / 5
Main
Where to Buy
Related Products
Product Details (34)
Description
CML-USB-10
Solar regulator type
PWM
Charging outputs
1
Nominal Power @ 12 V
120 W
Operating voltage
12 V, 24 V
Battery type
Lead-Acid, AGM, Gel
Bluetooth
No
Max. charging current
10 A
Max. PV open-circuit voltage
30 V
Protection from
Not specified
Battery voltage
12/24 V
Max. Charge/load current
10 A
Trickle charge
13.8 / 27.6 V (25 °C)
Main charge
14.4 / 28.8 V (25 °C), 0.5 hrs (daily)
Boost charge
14.4 / 28.8 V (25°C) for 2 hrs activation:Battery voltage < 12.3 / 24.6 V
Equalising charge
14,8 / 29,6 V (25 °C) für 2 h Aktivierung:14.8 / 29.6 V (25 °C) for 2 hrs activation:Battery voltage < 12.1 / 24.2 V (min. every 30 days)
Deep discharge protection
11.4 - 11.9 V / 22.8 - 23.8 V (by state of charge)11 / 22 V (by voltage)
Reactivation voltage
12.8 / 25.6 V
Overvoltage cut-off
15.5 / 31 V
Undervoltage cut-off
10.5 / 21 V
Max. PV voltage
30 / 50 V
Temperature compensation
-24 mv/K (12 V); -48 mv/K (24 V)
Consumption
< 4 mA
Grounding
Common positive pole
Ambient temperature
-40 - +45 °C
Max. Altitude
4000 m above sea level NN
USB charging port
USB Type A, 5 V, 700 mA
Max. cable cross section
16 mm² (AWG 6)
Protection
IP20
Height
80
Width
100
Depth
32
Weight:
0.16 kg
Compliance
CE compliant, RoHS compliant
