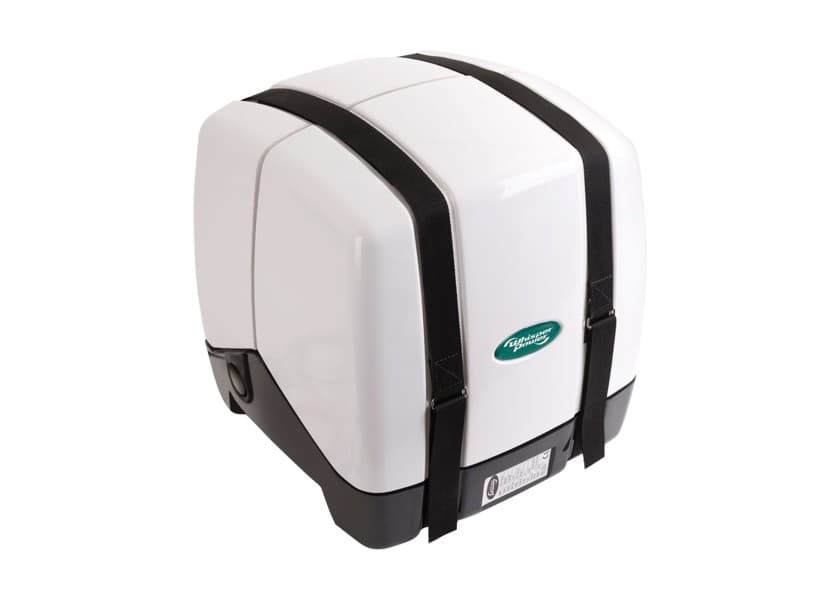

PICCOLO 5 MARINE Diesel Generator / 3.5 kW / automatic speed control
OEM: 49013005
1 / 5
Main
Where to Buy
Related Products
Product Details (39)
Description
WHISPER POWER - PICCOLO 5 MARINE / automatic speed control
Fuel
Diesel
Continous Power
3000 W
Peak power
3500 W
Output voltage
230 V
Weight
68 kg
Length
470 mm
Width
450 mm
Height
520 mm
Shipping information
Forwarder
Nominal power
3.5 kW
Continuous output
4.4 kVA / 3 kW
Output voltage/ frequency
230 V / 50 Hz
Noise level
54 dB(A) at 7 m / 65 dB(A) at 1 m
RPM range
2800-3600 RPM / automatic
Generator
Permanent Magnet Alternator (PMA)
Efficiency
94%
Harmonic distortion
< 5%
Peak output for 2 sec
200%
Frequency tolerance
± 0.1%
Motors
Whisperpower WP1
Number of cylinders
1
Capacity
309 cc
Air consumption
0.42 m³/min
Engine cooling
Indirect watercooling
Fuel consumption
0.8-1.2 l/h
Starting
Electrical - 12 Volt
Starter battery
12 V, 55 A (optional)
Battery charger function
Provided by the PMG
Depth
470
Genverter dry weight
68 kg (incl. GRP sound insulation)
WM-PMG weight
7.6 kg
Operating temperature
-10 to +40° C
Storage temperature
-20 to +70 °C
Protection category
Motor part / electronic part: IP21
Max. Operating angle
25º in all directions
Wet exhaust
Ø 40 mm
Oil filler neck
Top and side
Included in delivery
Diesel generator,PMG inverter,standard start/stop panel,fuel pump,12 m connection cable
