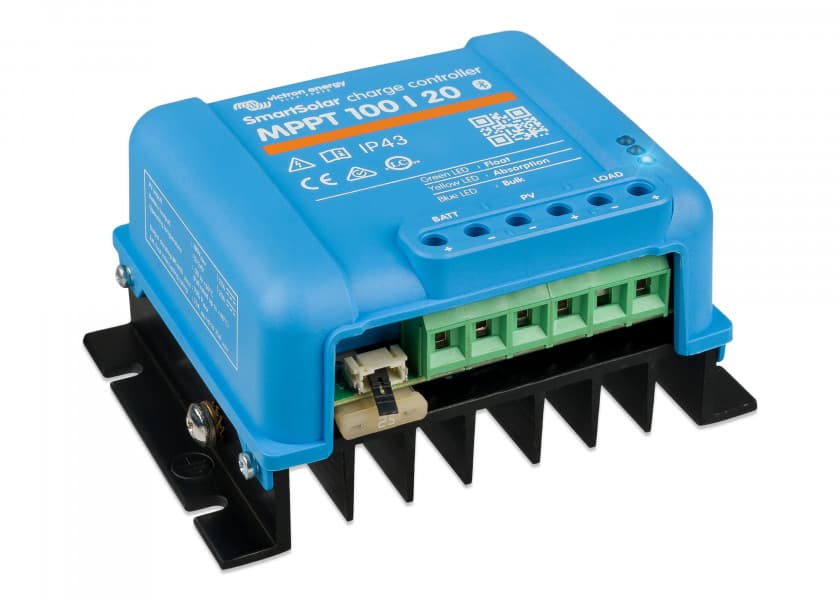

SmartSolar MPPT 100/20 Solar Charge Controller
EAN/GTIN: 871907604302
OEM: SCC110020160R
1 / 5
Main
Where to Buy
Related Products
Product Details (31)
Description
VICTRON - SmartSolar MPPT 100/20 solar charge controller
Solar regulator type
MPPT
Charging outputs
1
Nominal Power @ 12 V
290 W
Operating voltage
12 V, 24 V
Battery type
Lead-Acid, AGM, Gel, Lithium (LifePO4)
Bluetooth
Yes
Max. charging current
20 A
Max. PV open-circuit voltage
100 V
Data protocol
VE.Direct
Protection from
Not specified
Battery voltage
12/24 V
Rated charge current
20 A
Nominal PV power
12 V: 290 W24 V: 580 W
Maximum open circuit PV voltage
100 V
Operating temperature
-30 to +60 °C
Automatic load cut-off
Yes
Maximum efficiency
98%
Self-consumption
12 V: 25 mA24 V: 15 mA
Charge voltage 'absorption'
14.4 V / 28.8 V
Charge voltage 'float'
13.8 V / 27.6 V
Charge algorithm
Multistage, adaptive
load current
20 A
Protection
Reverse polarity on battery (fuse)Output short circuitOvertemperature
Power terminals
6 mm²
Protection category
IP43 (electronic components)IP22 (connection area)
Height
100
Width
113
Depth
60
Weight:
0.65 kg
Standards
EN/IEC 62109-1, UL 1741, CSA C22.2
