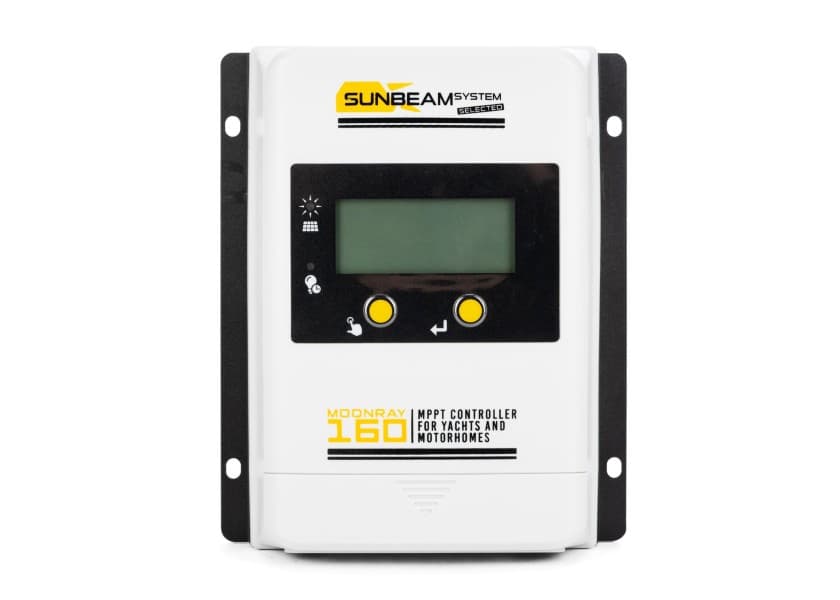

MoonRay 160 MPPT Solar Charge Controller / 160W@12V max. PV power
EAN/GTIN: 4050269076038
OEM: MOONRAY160
1 / 6
Main
Where to Buy
Related Products
Product Details (26)
Description
SUNBEAM - MoonRay 160 MPPT solar charge controller
Solar regulator type
MPPT
Charging outputs
1
Nominal Power @ 12 V
160 W
Operating voltage
12 V, 24 V
Battery type
Lead-Acid, AGM, Gel, Lithium (LifePO4)
Bluetooth
No
Max. charging current
10 A
Max. PV open-circuit voltage
45 V
Protection from
Not specified
Battery voltage
12/24 V
Rated charge current
10 A
Nominal PV power
12 V: 160 W24 V: 320 W
Maximum open circuit PV voltage
45 V
Operating temperature
-25 to +50 °C
Maximum efficiency
97.9 %
Self-consumption
13 mA
Charge algorithm
4-stage
load current
10 A
Power terminals
4 mm²
Protection category
IP33 (housing)
Height
175
Width
143
Depth
48
Weight
0.57 kg
Standards
EN/IEC 62109-1, EN61000-6-3/EN61000-6-1, 47 CFR Part 15, Subpart B, IEC62509, IEC62321-3-1
