SmartSolar MPPT 150/45 Solar Charge Controller
EAN/GTIN: 871907605302
OEM: SCC115045212
1 / 4
Main
Where to Buy
Related Products
Product Details (29)
Description

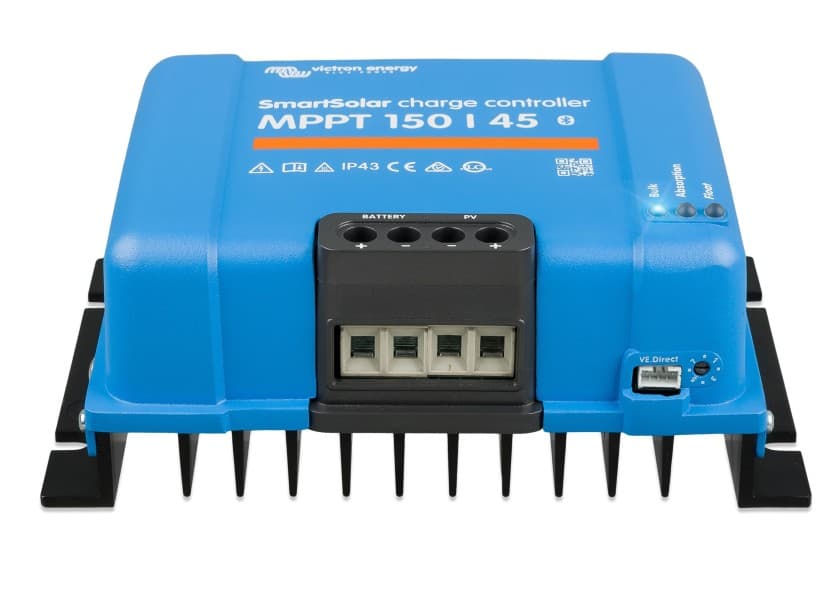

VICTRON - SmartSolar MPPT 150/45 solar charge controller
Solar regulator type
MPPT
Charging outputs
1
Nominal Power @ 12 V
650 W
Operating voltage
12 V, 24 V, 48 V
Battery type
Lead-Acid, AGM, Gel, Lithium (LifePO4)
Bluetooth
Yes
Max. charging current
45 A
Max. PV open-circuit voltage
150 V
Data protocol
VE.Direct
Protection from
Not specified
Battery voltage
12/24/48 V
Rated charge current
45 A
Nominal PV power
12 V: 650 W24 V: 1300 W48 V: 2600 W
Maximum open circuit PV voltage
150 V
Operating temperature
-30 to +60 °C
Maximum efficiency
98%
Self-consumption
12 V: 20 mA24 V: 15 mA48 V: 10 mA
Charge voltage 'absorption'
14.4 V / 28.8 V / 57.6 V
Charge voltage 'float'
13.8 V / 27.6 V / 55.2 V
Charge algorithm
Multistage, adaptive
Protection
Reverse polarity on battery (fuse)PV reverse polarityOutput short circuitOver temperature
Power terminals
16 mm²
Protection category
IP43 (electronic components)IP22 (connection area)
Height
130
Width
186
Depth
70
Weight:
1.25 kg
Standards
EN/IEC 62109-1, UL 1741, CSA C22.2
