FLY WEIGHT PREMIUM Solar Panel Kit / 3 x 45 W / 135 W
EAN/GTIN: 4250730280395
OEM: 500158
1 / 16
Main
Where to Buy
Related Products
Product Details (29)
Description

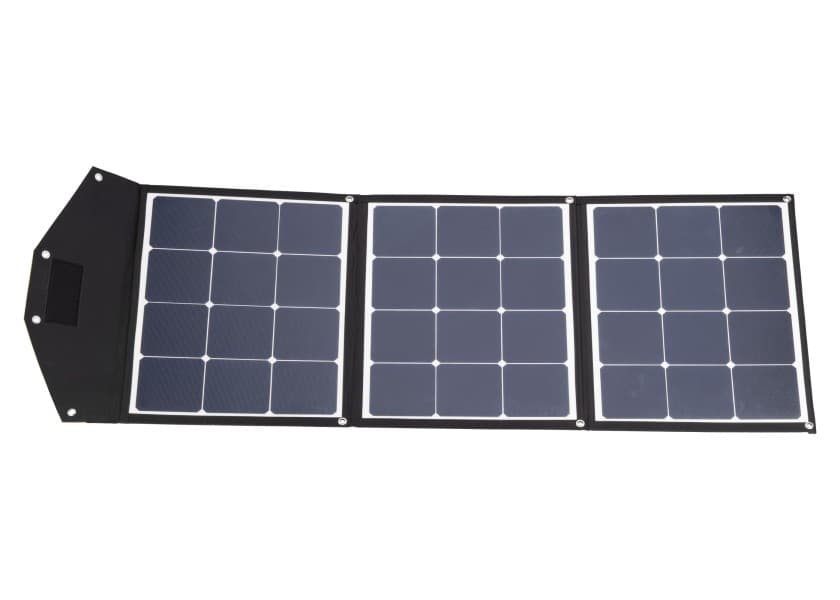

FLYWEIGHT PREMIUM solar module kit
Construction type
Foldable
Nominal Power @ 12 V
135 W
max. Power Current (Imp)
6 A
max. Power Voltage (Ump)
22.6 V
Short circuit current (Isc)
6.4 A
Open circuit voltage (Uoc)
26 V
Connector
SAE
Attachment
Screws, Loops
Module connection
Rear side
Connector cable
Flat cable (2-core)
Walkable
No
Length
1525 mm
Width
560 mm
Height
10 mm
Wire cross section
2.5 mm²
System voltage
12 V
Nominal power
135 W (3x 45 W)
Spannung bei max. leistung (Vmp)
22.6 V
Current at max. power (Imp)
6 A
Cells / Cell efficiency
3x 12 mono / 23.9 %
Operating temperature
-10 °C to +60 °C
Frame
Textile
Module/Battery/Adapte cable
approx. 4000 mm / 1500 mm / 1000 mm - 14 AWG or, approx. 2.5 mm²
Depth
10
Weight:
5.6 kg
Charge controller type / system voltage / max. solar current
PWM with LCD display / 12 V DC / 10 A
USB output power charge controller
5 V DC / 1500 mA
Certificates
CE, RoHS
