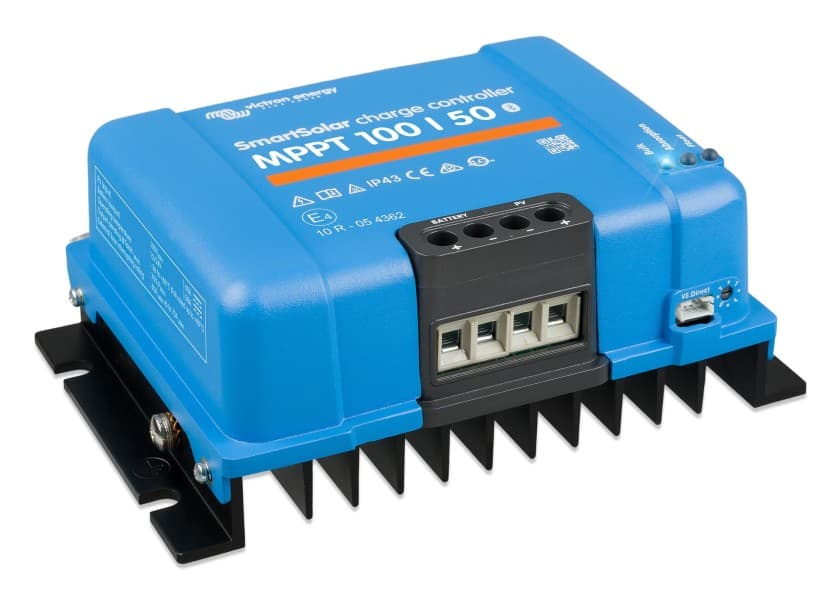

SmartSolar MPPT 100/50 Solar Charge Controller
EAN/GTIN: 871907604019
OEM: SCC110050210
1 / 5
Main
Where to Buy
Related Products
Product Details (31)
Description
VICTRON - SmartSolar MPPT 100/50 solar charge controller
Solar regulator type
MPPT
Charging outputs
1
Nominal Power @ 12 V
700 W
Operating voltage
12 V, 24 V
Battery type
Lead-Acid, AGM, Gel, Lithium (LifePO4)
Bluetooth
Yes
Max. charging current
50 A
Max. PV open-circuit voltage
100 V
Data protocol
VE.Direct
Protection from
Not specified
Battery voltage
12/24 V
Rated charge current
50 A
Nominal PV power
12 V: 700 W24 V: 1400 W
Maximum open circuit PV voltage
100 V
Operating temperature
-30 to +60 °C
Automatic load cut-off
Yes
Maximum efficiency
98%
Self-consumption
12 V: 30 mA24 V: 20 mA
Charge voltage 'absorption'
14.4 V / 28.8 V
Charge voltage 'float'
13.8 V / 27.6 V
Charge algorithm
Multistage, adaptive
Max. PV short circuit current
60 A
Protection
PV reverse polarityOutput short circuitOver temperature
Power terminals
16 mm² / AWG6
Protection category
IP43 (electronic components)IP22 (connection area)
Height
130
Width
183
Depth
70
Weight:
1.3 kg
Standards
EN/IEC 62109-1, UL 1741, CSA C22.2
