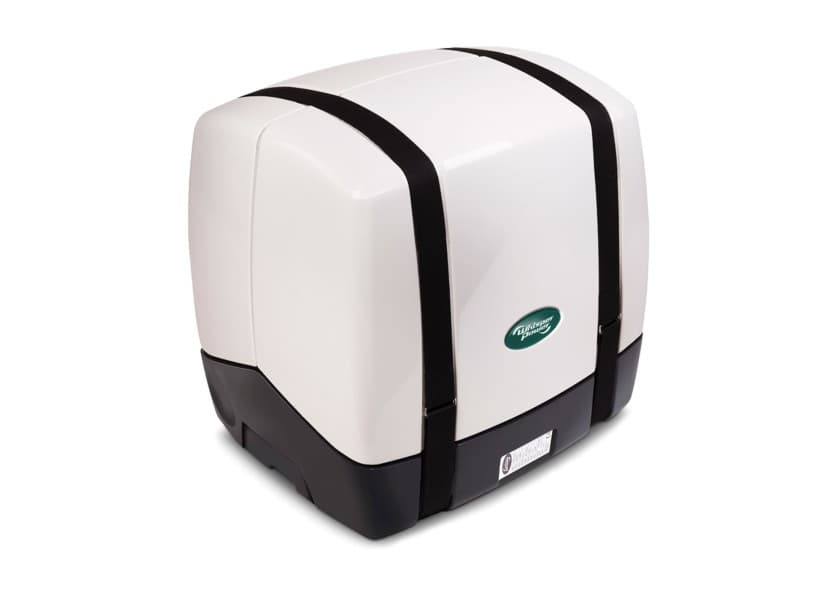

PICCOLO 8 MARINE Diesel Generator / 6.4 kW / manual speed control
OEM: 49005005
1 / 5
Main
Where to Buy
Related Products
Product Details (37)
Description
WHISPER POWER - PICCOLO 8 MARINE
Fuel
Diesel
Continous Power
6000 W
Peak power
6400 W
Output voltage
230 V
Weight
155 kg
Width
550 mm
Length
660 mm
Height
622 mm
Shipping information
Forwarder
Nominal power
6.4 kW
Continuous output
6.0 kW
Output voltage/ frequency
230 V / 50 Hz
Noise level
51 dB(A) at 7 m / 60 dB(A) at 1 m
RPM range
2200-2800 rpm / manually adjustable
Generator
Permanent Magnet Alternator (PMA)
Efficiency
94%
Harmonic distortion
< 3%
Peak output for 2 sec
200%
Frequency tolerance
± 0.1%
Motor
Kubota Z482
Number of cylinders
2
Capacity
479 cc
Air consumption
0.95 m³/min
Engine cooling
Indirect watercooling
Fuel consumption
1.2 - 2.5 l/h
Starting
Electrical - 12 Volt
Starter battery
12 V, 80 A (optional)
Battery charger function
Integrated alternator 12 V / 12.5 A
Depth
660
Genverter dry weight
155 kg (incl. GRP sound insulation)
WM-PMG weight
7.2 kg
Waterproofing
Motor part / electronic part: IP21
Max. Operating angle
25º in all directions
Wet exhaust
Ø 40 mm
Oil filler neck
Top and side
Included
Diesel generator,PMG inverter,standard start/stop panel,fuel pump,12 m connection cable
