DIGITAL YACHT

A growing number of boaters use an iPad or Android tablet for their navigation tasks and thus the iAISTX Plus was designed specifically for their needs. This full function Class B AIS transponder with WiFi and NMEA 2000 is able to send your boat position and identity data to other AIS equipped vessels. It also provides a wireless interface for mobile devices. This enables popular apps to display data received from other AIS-enabled vessels. The GV30 GPS-AIS combination antenna antenna included in the delivery contents receives AIS data in addition to GPS position data and transmits it just as reliably. This saves you the expense of installing an additional FM aerial. The iAISTX Plus has an NMEA 2000 interface (with integral drop cable) to connect effortlessly with modern plotters, instruments and multifunction displays and provide AIS functionality. Integrated WIFI iAISTX Plus creates a secure, password protected, local Wi-Fi network which allows AIS and GPS data to be sent to popular iOS and Android apps such as Navionics, iSailor, Weather4D, SailGrib, iNavX, TimeZero and more. These apps offer a detailed overlay of local AIS targets all updated in real-time. Depending upon the app, you can click on a target and can see identity as well as collision avoidance data such as CPA (closest point of approach) and TCPA (time to closest point of approach). Uncomplicated Configuration Thanks to the embedded web interface, the iAISTX Plus can be configured quickly and easily using your smartphone, tablet or PC's browser with the static data of your boat, required of all AIS transponders. Simply open your web browser, enter the iAISTX’s IP address and you can configure the vessel details (MMSI number, vessel name etc.), network name, password and even merge the AIS’s WiFi to an existing WiFi network on board. No complicated programming software or app is required. You can even view the received NMEA data in the web browser, for easy fault finding of issues. Finally, the iAISTX supports TCP and UDP network protocols for maximum compatibility with apps. Easy installation Just connect the power (12/24v), mount the supplied Digital Yacht GV30 GPS-AIS combi antenna (with 10 m connection cable) and connect this to the iAISTX Plus directly. Specifications Class B SOTDMA AIS transponder with WiFi and NMEA 2000 WiFi interface for mobile phones, tablets, iPads and PCs NMEA 2000 interface for plotters and multifunction displays with AIS compatibility Support for all the latest target types such as ATONs and AIS MOB devices Latest HF AIS technology for superior performance UDP and TCP/IP protocols supported for up to 7 connected devices Password-protected, secure wireless connection Internal WLAN antenna with a range of up to 18 metres Compatible with 100s of apps. LED status indicators for wireless connection, data, status, time out, power and silent mode Easy embedded web interface for programming Compact size just 20 x 14 x 4.5cm Weight 1250 g 12/24V operation and ultra-low 2W consumption Digital Yacht GV30 GPS/VHF Antenna Compact and powerful! The GV30 AIS/GPS combination antenna from Digital Yacht is designed for use with Class B AIS transponders. It is precisely tuned to the 162 MHz AIS frequency. High gain GPS element. Clearly designed with easy assembly and installation in mind, the manufacturer has included two individual cables, 10 m long, equipped with small FME plugs. The antenna can be mounted on all standard 1"-14 antenna holders as well as directly on flat surfaces. The coaxial cables can be routed either straight down or sideways out of the antenna housing or the threaded base. Delivery contents includes one FME/BNC and one FME/TNC adapter each. Matching 1"-14 tilt feet and antenna holders for deck, mast or as railing mounting are available separately. Details Combination AIS/VHF and GPS antenna Specifically tuned to 162MHz High gain GPS element Small dimensions: diameter 75 mm, height with threaded base 190 mm, height without threaded base 150 mm 2 x 10 m coax cable, white, equipped with small FME plugs (female), cable Ø 5 mm Well-designed housing allows easy and variable cable routing Standard 1"-14 threaded base, compatible with commercially available antenna holders and tilting bases 1x FME/BNC (male/male) and 1x FME/TNC (male/male) adapter each included in delivery Notes As standard, the antenna is set up for mounting on standard 1"-14 antenna holders. The 1"-14 threaded base can be removed for direct mounting on flat surfaces. It is attached to the antenna housing with 3 hexagon socket screws (M3x10). You will need a 2.5 mm Allen key to loosen the hexagon socket screws. When mounting on a flat surface, ensure that the underside of the antenna is adequately sealed. Do not mix up the connecting cables. These are marked close to the FME connectors with small printed flags and directly on the cable with "GPS/GLO" or "AIS" printed in yellow. Extending the coax wires should be avoided if possible. However, if necessary, you will find appropriate FME/FME connectors and RG8X cables in our range. If you make an extension, make sure you check the antenna functions before you go on the water! Features Discover the features that make this product stand out. From technical details to special functions – we’ve summarized all the key information for you. Class Class B SOTDMA capability GPS NMEA2000 NMEA0183 No WiFi

WHALE

Self priming with narrow mounting base allows installation for use between two sinks. The Whale MK6 is suitable for fresh water and saltwater.

WEATHERDOCK

The AIS Class B easyTRX3 transmitter/receiver by Weatherdock boasts the latest innovations: 5 W broadcast power, faster transfer rate of AIS protocols and SOTDMA technology. The AIS transceiver features a rugged, compact and waterproof housing and provides permanent parallel transmission and reception of both AIS frequencies. The device has an integrated splitter, an integrated GPS and wifi antenna, a DVBT module and DAB receiver. In addition, this version has a DAB receiver for easy access to digital radio stations with outstanding sound. The DVBT module filters and amplifies received frequencies of DVB-T, DVB-T2 and FM radio reception. As a result, no extra antenna is required. The SOTDMA technology improves AIS transmission by organising the free time slots in the AIS transmission process and reserving the same space for the next transmission interval. Connect to a wide range of devices with NMEA2000, 2x NMEA0183 and USB connectivity. The WiFi function would also allow wireless transmission. AIS data is displayed in real time on a compatible display. The integrated 72-channel GNSS/GPS receiver provides optimal reception of position data. Please note that depending on the installation location of the AIS transponer, the integrated GPS receiver may not receive a sufficient GPS signal. In this case, it is recommended to receive GPS data using the separately available GPS antenna. The USB connection to a computer provides the power supply, allowing the device to be easily configured at home. The same applies to the internal SD memory, which can also be controlled and accessed via computer without an external power source. All AIS travel data, similar to a black box, can be stored on the internal storage device for data backup. With a USB connection to a PC/MAC or laptop, the memory can be accessed or the easyTRX3 can be programmed with relevant ship data using the included software, without having to connect the easyTRX3 to its own power supply. All features at a glance AIS Class B SOTDMA time slot system 5 W radiated transmission power Faster transmission intervals (depending on speed) Integrated antenna splitter Integrated GPS antenna NMEA2000, NMEA0183, WiFi and USB port connectivity Internal SD memory card for logging functionality Device configuration with USB power supply Access internal data memory with USB power supply Robust and waterproof housing Meets new international standard IEC62287-2 Technical Data 1 channel FM transponder 2 channel VHF receiver (AIS frequencies: 161.975 MHz and 162.025 MHz) 72-channel GNSS / GPS receiver Channel sensitivity: -112 dBm Protection class IP67 (dustproof and waterproof against temporary submersion) GPS antenna connector Installation below deck Operating temperature: -10° C to + 55° C NMEA2000 Micro-C connection NMEA telegram type: VDM Transmitting power: 5 W Operating voltage: 9 - 32V Dimensions LxWxH: 190 x 135 x 60 mm Weight: approx. 700 g Compliance BSH IEC62287-2 Features Discover the features that make this product stand out. From technical details to special functions – we’ve summarized all the key information for you. Class Class B SOTDMA capability Integrated VHF splitter GPS NMEA2000 NMEA0183 Yes WiFi

RAYMARINE

Cyclone Pro radars from Raymarine provide mariners with unmatched situational awareness, gving them the confidence to navigate busy waterways with ease. Each model features innovative technology, such as beam sharpening, detection capabilites and bird mode, and is sure to impress with high speed 60 RPM imaging. Delivery includes 15 m radar cable. Made for Extremes The radar has been designed for use in winds of up to 100 knots and can therefore withstand the most extreme weather conditions. Meets the commercial grade IEC 62388 standard for ship bourne radar. 360° Degrees of Awareness Fast 60 RPM rotational speed delivers accurate target tracking for reliable 360° situational awareness. Doppler and ARPA Target Tracking Integrated Doppler target tracking makes it easy to interpret dangerous and safe targets. ARPA technology additionally enables professional target tracking of up to 50 targets with the same advanced ARPA technology. . RangeFusion Technology RangeFusion technology combines short and long pulses to quickly and clearly identify and display both close range and distant targets in a single high-resolution radar image that is quick and easy to interpret. Designed with Fishing Intelligence The Cyclone Pro is performance tuned for locating sea birds. This means gain and tune settings are intelligently optimised for imaging distant sea birds. Low Profile and Adaptable Installation Options Standing at just 335 mm, the radar features an impressively low profile. Furthermore, the antenna base has a built-in cable gland that neatly conceals all cable connections. Technical data Power supply 10.2 - 31.2 V DC Power consumption 95 W (typical) 195 W (max.) Operating temperature range -25 to +55 °C Antenna size 121 cm Output power 110 W Max. range 96 nm Rotation speed 12 / 24 / 36 / 48 / 60 RPM Beam width (vertical) 25° Beam width (horizontal) 1.99° Boot up time 40 seconds Transmitter frequency 9370 / 9400 / 9430 MHz (selectable) Receiver characteristic Linear Receiver noise Less than 5 dB Data connection 1x Raynet connector Waterproof IPX6 Max. wind speed 100 kts Dimensions Length: 1336 mm Pedestal: 388 x 360 x 335 Weight: 25 kg Included Open array radar, VCM100, 15 m power cable, 15 m data cable and mounting material Features Discover the features that make this product stand out. From technical details to special functions – we’ve summarized all the key information for you. Doppler mode (M)ARPA

RAYMARINE

The EV200 autopilot delivers precise course control, regardless of the speed and sea conditions.

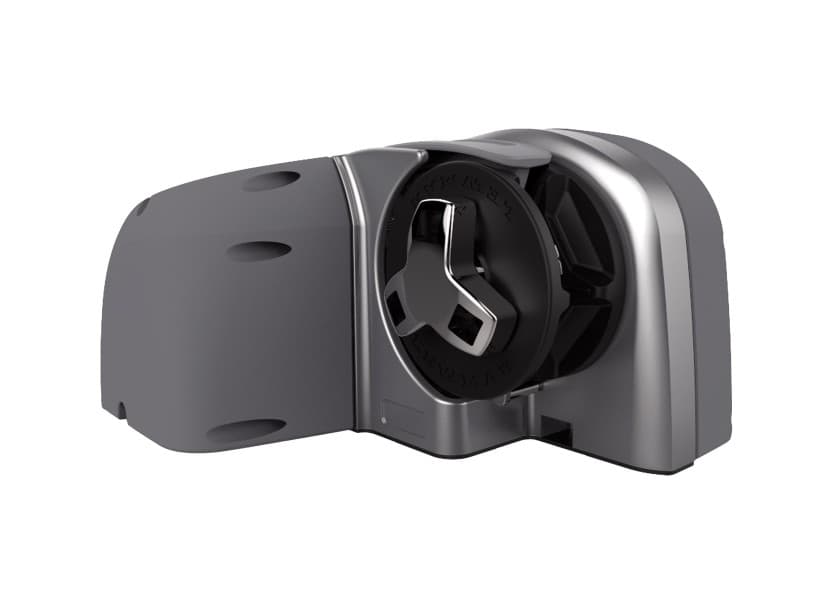

LEWMAR

The LEWMAR HX series horizontal windlasses feature an efficient planetary gear and high pulling power. The base is made of anodised aluminium and is protected by a composite housing. This creates a watertight deck unit that reliably protects the motor from corrosion (IP67). Low-maintenance and quick and easy installation. Available with chain gypsy or as a combination with chain gypsy and capstan.

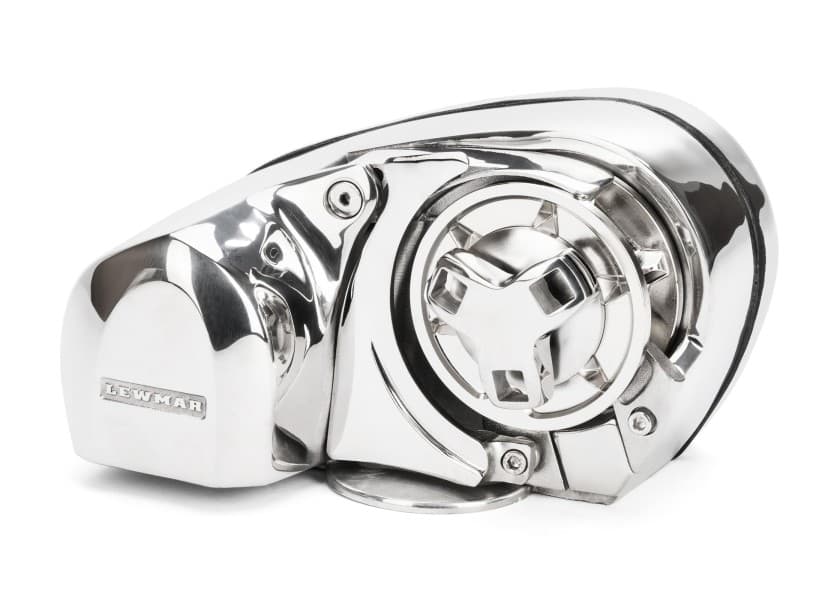

LEWMAR

The LEWMAR Pro series windlasses are paised by professionals worldwide. They are made entirely of high-quality and durable stainless steel (AISI 316), which protects the inside well and ensures longevity. A powerful motor provides fast line speed and is extremely efficient and reliable. The Pro Series features a manual emergency recovery for when the power fails. Suitable for boat lengths between 6 and 12 m, depending on the version.

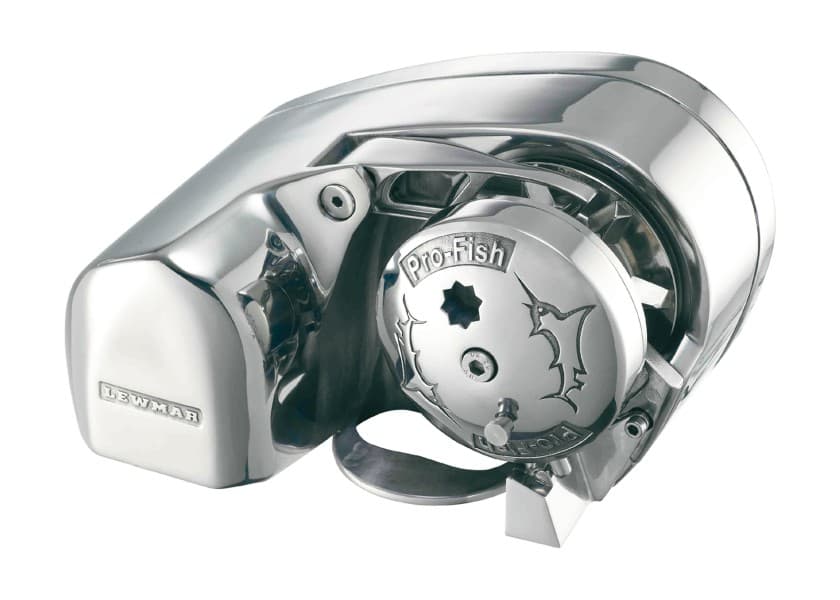

LEWMAR

The LEWMAR Pro-Fish series horizontal windlasses are made of durable stainless steel (AISI 316) and are ideal for fast anchor manoeuvres. They have a powerful and durable motor including an automatic free-fall function. The mechanism allows for convenient control from the cockpit, allowing you to stop directly over a wreck or reef and set the anchor quickly and accurately. Fast line speed Easy deck mounting

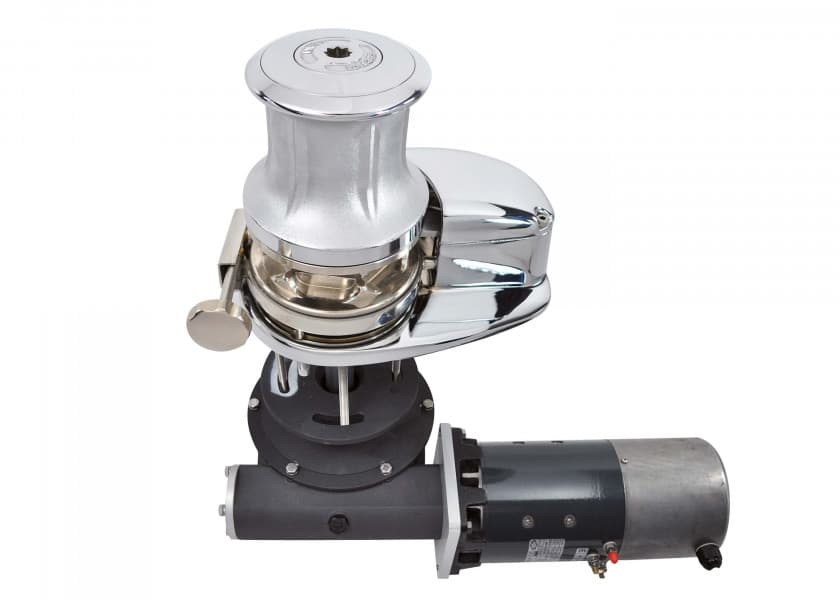

LEWMAR

The LEWMAR VX series vertical windlasses feature the latest lightweight construction technology and a hybrid chain gypsy that provides quieter and improved chain movement. The built-in worm-wheel gearbox also ensures maximum reliability and safety. Made of stainless steel in combination with composite materials and equipped with a chain counting sensor. Easy assembly Non sparking Motor protection according to IP68

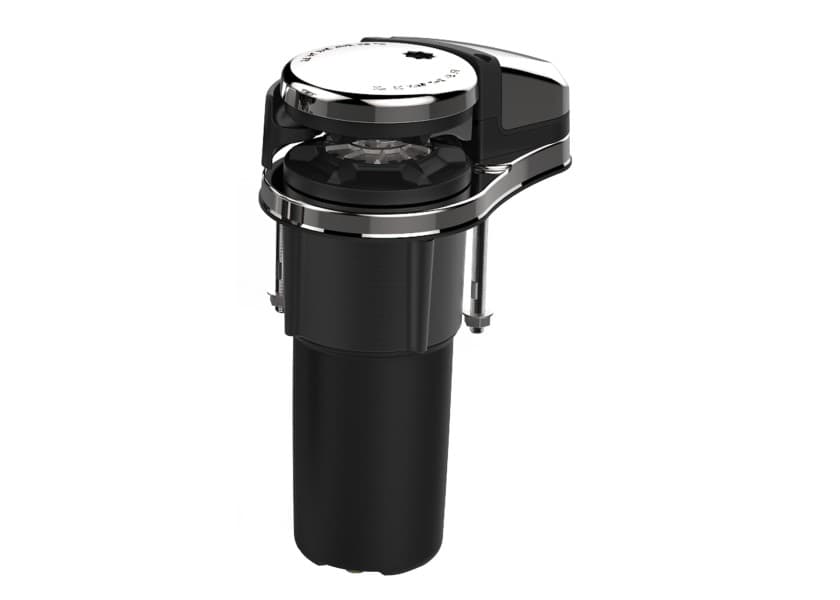

LEWMAR

The LEWMAR VX1L windlass complements the VX series and features a compact and easy-to-install drive unit that is located vertically under the windlass. It features the latest lightweight construction technology and a hybrid chain gypsy that provides quieter and improved chain movement. The built-in worm-wheel gearbox also ensures maximum reliability and safety. Manufactured from stainless steel (AISI316) and composite materials. Manual free fall function Identical installation dimensions as the V700 windlass Motor protection according to IP67 Available with or without capstan
