QUANTUM 2 Q24D Doppler Radar Antenna / 15m power and data cable
EAN/GTIN: 00723193823125
OEM: T70417
1 / 4
Main
Where to Buy
Related Products
Product Details (34)
Description

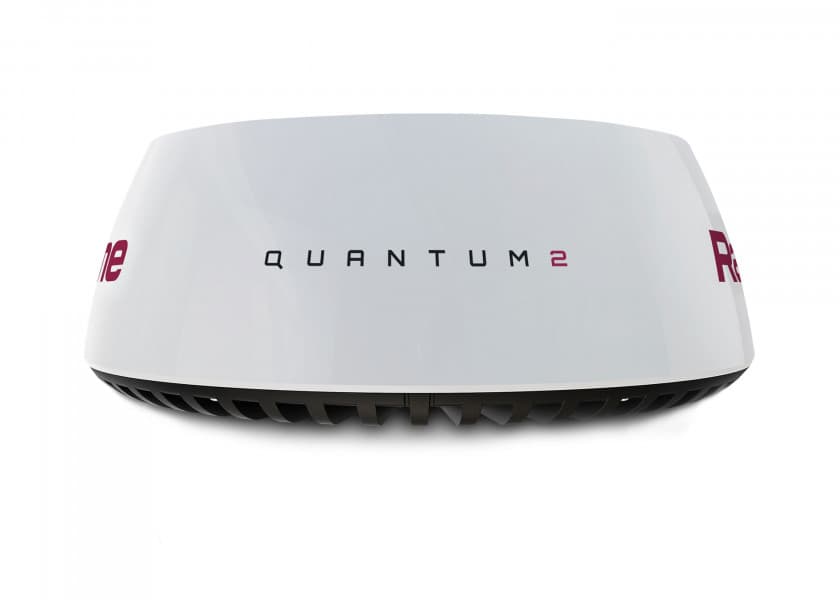

Raymarine - QUANTUM 2 Doppler Radar Antenna / with 15m power cable and 15 m data cable.
Antenna type
Radom
Tx power
20 W
Max. range
21 nm
Beam width
4.9 °
Doppler mode
Yes
Rotational speed
24 RPM
WiFi
Yes
(M)ARPA
Yes
Weight
5.6 kg
Compatible displays
AXIOM DV, AXIOM RV, AXIOM+ RV, AXIOM Pro S, AXIOM Pro RVX, AXIOM 2 Pro S, AXIOM 2 Pro RVM
Shipping information
Shipping of bulky goods
Weight:
5.6 kg
Supply voltage:
Either 12 V or 24 V DC nominalMinimum: 10.8 V DC | Maximum: 31.2 V DC
Power consumption:
Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2W
Waterproofing:
IPX6
Operating temperature range:
-10° C to +55°C
Storage temperature range:
-25°C to +70°C
Additional storage conditions:
Store upright; do not block vents on underside
Humidity:
Up to 95% at 35°C
Maximum wind speed:
100 kts
Type:
X-band solid-state transmitter with pulse compression technology
Transmit frequency:
9354 MHz to 9446 MHz
Peak power output:
20 W
Duplexer:
Circulator
Pulse widths (3 dB):
4 ns to 14.7
Chirp bandwidth:
Chirp lengths: 40 ns to
pulse repetition frequency:
2083 Hz
Standby mode
Scanner rotation - OFF | Scanner transmission - OFF | Wi-Fi link - ON
Beamwidth (nominal):
Horizontal: 4.9 ° | Vertical: 20 °
Polarization
Horizontal
Rotation speed
24 rpm nominal
Traget Tracking
Tracking of 10 simultaneous MARPA and / or ARPA targets (with Doppler-assisted ARPA)
Target Filtering:
True Motion mode identifies only those objects that are moving relative to the vessel
