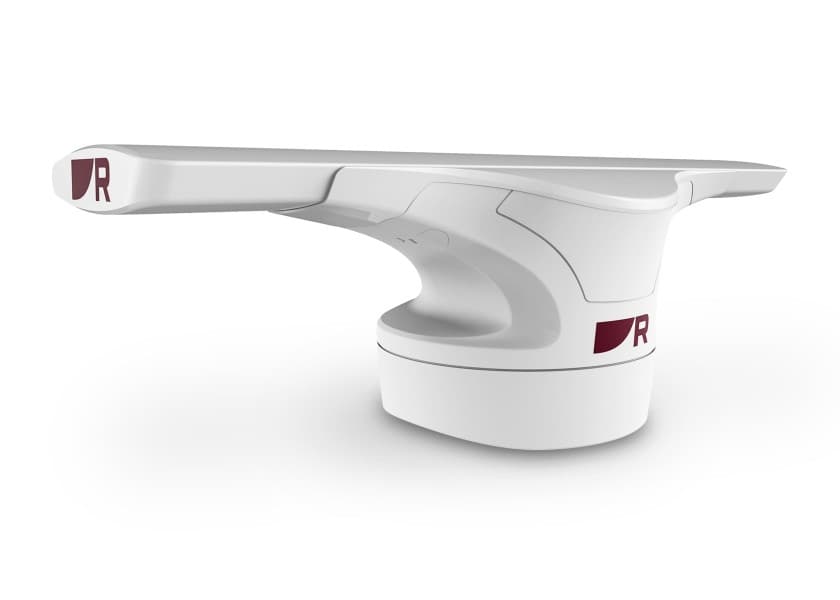

CYCLONE Open Array Radar / 91cm
OEM: T70491
1 / 8
Main
Where to Buy
Related Products
Product Details (31)
Description
RAYMARINE - CYCLONE open array radar / 91cm
Antenna type
Slot antenna
Tx power
55 W
Max. range
72 nm
Beam width
2.83 °
Doppler mode
Yes
Rotational speed
60 RPM
WiFi
No
(M)ARPA
Yes
Weight
23 kg
Compatible displays
AXIOM+ RV, AXIOM Pro S, AXIOM Pro RVX, AXIOM 2 Pro S, AXIOM 2 Pro RVM
Operating voltage
10.2 - 31.2 V DC
Power consumption
70 W (typical)170 W (max.)
Operating temperature range
-25 to +55 °C
Antenna size
91 cm
Output power
55 W
Rotation speed
12 / 24 / 36 / 48 / 60 RPM
Beam width (vertical)
25°
Beam width (horizontal)
2.83°
Boot up time
40 seconds
Transmitter frequency
9370 / 9400 / 9430 MHz (selectable)
Receiver characteristic
Linear
Receiver noise
Less than 5 dB
Data connection
1x Raynet connector
Waterproof
IPX6
Max. wind speed
100 kts
Height
Length (antenna beam): 1031 Pedestal: 388
Width
360
Depth
335
Weight:
23 kg
Included
Open array radar, VCM100, 15 m power cable, 15 m data cable and mounting material
