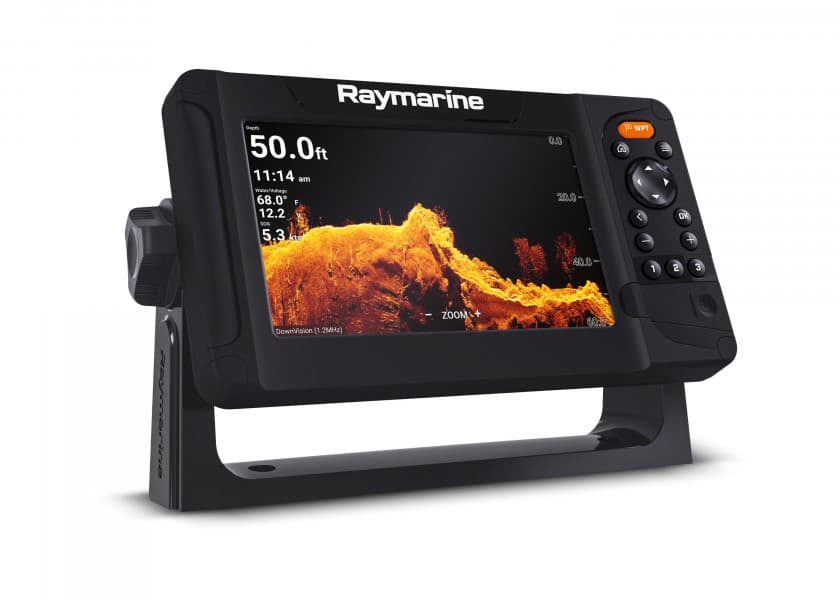

Element 7 HV / buttons / with HyperVision Sonar without transducer
EAN/GTIN: 00723193827994
OEM: E70532
1 / 6
Main
Where to Buy
Related Products
Product Details (40)
Description
RAYMARINE Element 7 / with HyperVision Chirp sonar
Display size
7 Inch
Resolution
800 x 480 px
Operating mode
Keys
With transducer
No
Viewing angle
Downwards, Sidewards
Screen brightness
1500 Nits
NMEA0183
No
NMEA2000
Yes
Ethernet / Network
No
WiFi
Yes
Bluetooth
Yes
Radar capable
Yes (only via WiFi)
Tablet control
No
Sonar module
Yes
Sonar type
CHIRP / Fishfinder, DownVision, SideVision, RealVision 3D, HyperVision 3D, Numerical depth
Nautical chart support
Yes
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Installation width
225 mm
Installation height
120 mm
Sonar view
Fish, Bottom structure, 3D bottom structure
IP protection class
IPX7
Compatible Raymarine transducers
CPT-S CHIRP, CPT-100, CPT-110, CPT-120, HV-100, HV-300
Screen size
7"
Touchscreen
Non-touch
Screen resolution
800x480
Brightness
1500 Nits
GPS
Integrated GPS / GNSS receiver: GPS / GLONASS
Sonar
CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), Realvision 3D (Standard and Hyper)
Sonar in the network
Yes
Supported nautical charts
Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX + and all charts listed on the Raymarine Chart Store.
Waypoints routes
10,000 waypoints / 200 waypoints groups / 150 rods with max 250 waypoints / 16 tracks - 10,000 track points per track
Interfaces
NMEA2000-Limited (data input engine, tank sensor, compass, GPS and AIS data data output: GPS for radio), Wi-Fi, Bluetooth.For NMEA2000 GPS and AIS data update to the current Element Lighthouse version 3.9 free of charge. For more information, visit the Raymarine Support page.
Height
240
Width
135
Depth
62
Nominal voltage
12V DC (8V - 16V DC)
Current consumption
15W
Water resistance
IPX6 and IPX7
Operating temperature
-25 ° C to + 55 ° C
