QUANTUM Radar Q24C / 15m power and data cable
EAN/GTIN: 00723193813461
OEM: T70266
1 / 9
Main
Where to Buy
Related Products
Product Details (28)
Description

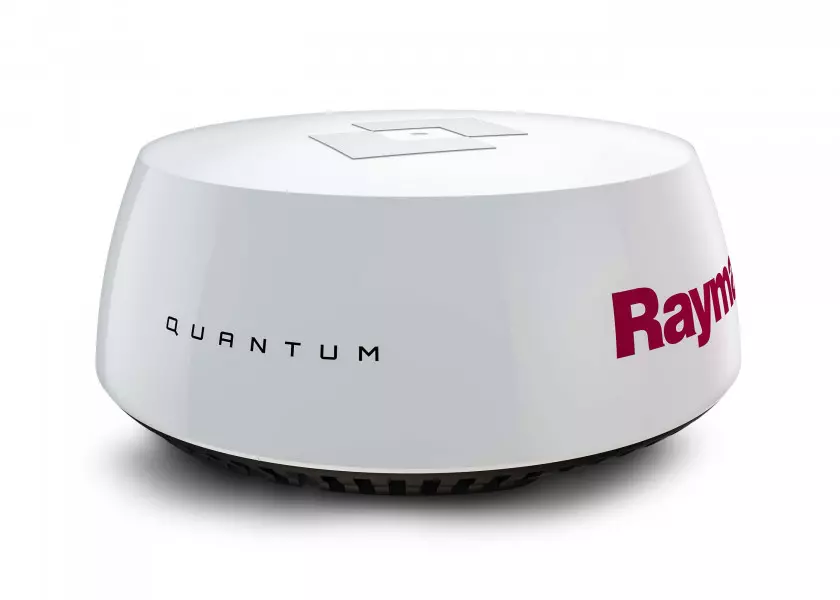

RAYMARINE - Quantum Wireless CHIRP Radar / with 15m power cable and 15 m data cable
Antenna type
Radom
Tx power
20 W
Max. range
21 nm
Beam width
4.9 °
Doppler mode
No
Rotational speed
24 RPM
WiFi
Yes
(M)ARPA
Yes
Weight
5.6 kg
Compatible displays
AXIOM DV, AXIOM RV, AXIOM+ RV, AXIOM Pro S, AXIOM Pro RVX, AXIOM 2 Pro S, AXIOM 2 Pro RVM
Input Voltage
12 or 24 Vdc (Min: 10.8V, Max. 31.2V)
Networking
Wi-Fi or wired Ethernet (RayNet)
Antenna Type
Patch Array
Power Consumption
Transmit mode 17W; standby mode 7W; sleep mode 2W
Range
Scales From 1/16 to 24 nautical miles
Transmit Frequency
9354 to 9446 MHz
Peak Power Output
20W
Duplexer
Circulator
Pulse Widths (3 dB)
40 ns to 14.7 μs
CHIRP Lengths
400 ns to 20 μs
CHIRP Bandwidth
Up to 32 MHz
IF Bandwidth
26 MHz
Noise
Less than 4 dB
Max. Range Scale
from 1/16 to 24 nautical miles
Beamwidth (nominal)
4.9º horizontal and 20º vertical
Polarisation
Horizontal
Waterproofing
IPX6
