AXIOM + 9 / Touch / with AIS700
1 / 10
Main
Where to Buy
Related Products
Product Details (44)
Description

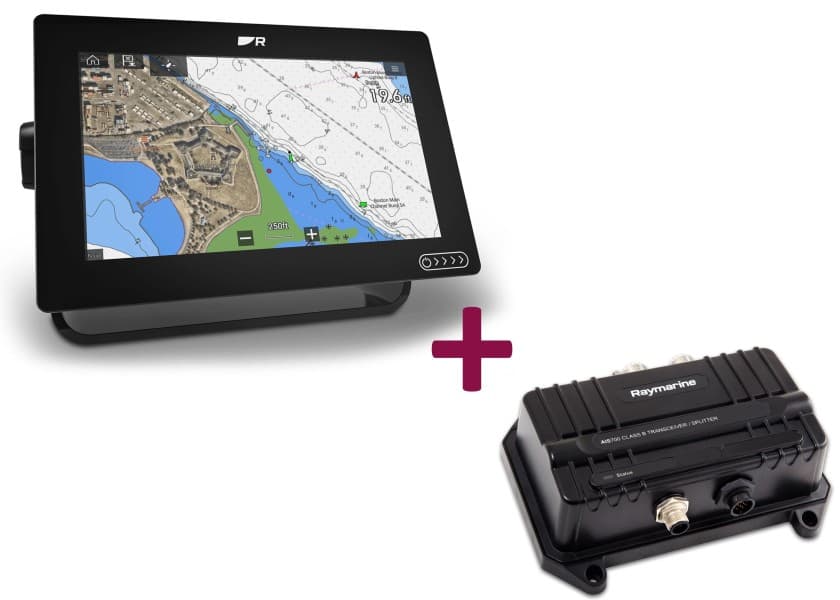

RAYMARINE AXIOM + 9 with AIS700
Display size
9 Inch
Resolution
1280 x 720 px
Viewing angle
85 °
Screen brightness
1500 Nits
Operating mode
Touch screen
NMEA2000
Yes
NMEA0183
No
WiFi
Yes
Bluetooth
Yes
Ethernet / Network
Yes
Radar capable
Yes
Tablet control
Yes
Sonar module
Optional
Sonar type
Numerical depth
Nautical chart support
Yes
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Installation width
231 mm
Installation height
145 mm
With transducer
No
IP protection class
IPX7
Display type
Multitouch with HydroTough (resistant coating)
Brightness
1500 nits
Voltage
12 V DC (8 - 16 V DC)
Power consumption
8.95 W
Ethernet
Yes,1x port
SeaTalkNG
Adapter cable necessary
USB
1x USB mircoAB
GPS
Integrated (10 Hz, 28 channel)GPS/GLONASS/Galileo/Beidou
Sonar
Optional
Radar
Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS
Yes, via NMEA2000
Chart compatibility
Navionics, C-MAP and Lighthouse
Card slot
1x
Autopilot operation
Evolution autopilot
Thermal image
FLIR AX8, M232, M300 series, M400, M500
Video/camera
Compatible with CAM210IP and CAM220IP (max. 10 cameras)
Operating temperature
-25 to +55 °C
Storage temperature
-30 to +70 °C
Waterproof
IPX6 / IPX7
Height
244
Width
158
Depth
77
Weight:
2.27 kg
