i4 Satellite TV-Antenna / Twin LNB
EAN/GTIN: 8863100118882
OEM: B4-409Q
1 / 5
Main
Where to Buy
Related Products
Product Details (36)
Description

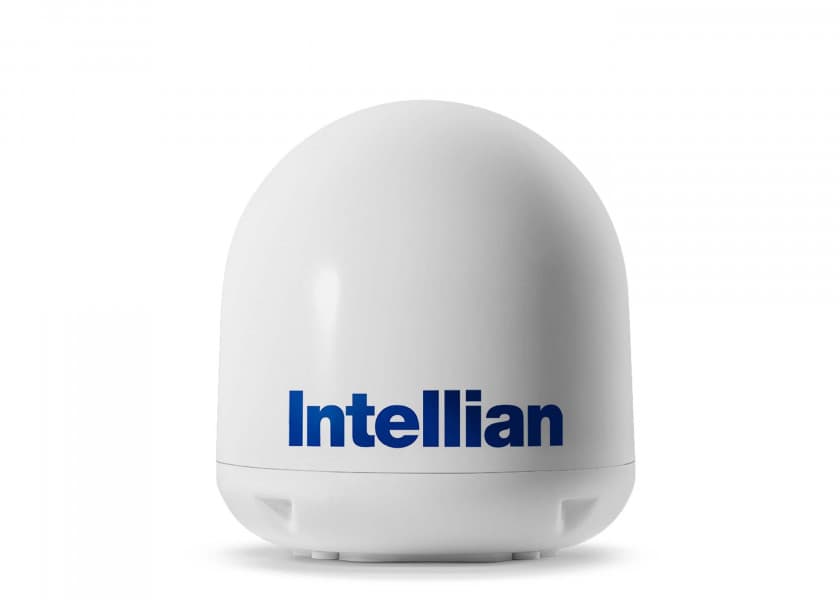

Intellian - i4 Satellite TV-Antenna / Twin LNB
Operating voltage
12 V, 24 V
Dish diameter
45 cm
Footprint
Astra 1, Astra 2, Hotbird, Hispasat, Thor, Sirius
LNB
Twin (2x)
Bluetooth
No
GPS
Yes
Outer-Ø
500 mm
Height
540 mm
Weight
11.6 kg
Connector
F Connector
Number of outputs
2
Material
Plastic
Colour
White
Cable length
15 m
Antenna type
SAT, SAT, SAT
Watts
40 W
Radome height
54 cm / 21.2"
Radome diameter
50 cm / 19.7"
Reflector diameter
45 cm / 17.7"
Weight:
11.6 kg / 25.5 lbs
Operating temperature
-25 °C to +55 °C / -13 °F to +131 °F
Storage temperature
-40 °C to +80 °C / -40 °F to +176 °F
Water rating
IPX6
Compliance
CE/FCC
Receive frequency coverage
10.7 ~ 12.75 GHz
Minimum transmission power
48 dBW
Azimuth area
680°
Elevation area
0° to 90°
Ship movement
Roll +/- 25°, pitch +/- 15°
Rotation speed
50° /second
Width
21.7
Depth
5.4 cm / 7
GPS Interface
Integrated (NMEA0183)
Power consumption (amps)
30 W / Max. 50 W
Included in delivery
Antenna, radome, reflector, LNBACU (control unit)PC programming software (CD)Installation and operation manualMounting templateQuick instructionsInstallation kit2x mounting brackets for ACU15 m RG6 coaxial cable from the antenna to the control unit3 m RG 6 coaxial cable10 m DC power cable1.8 m PC cable with serial connectorConnectors & screws
