NSS12 evo³S / touch + buttons
EAN/GTIN: 9420064130184
OEM: 000-15406-002
1 / 11
Main
Where to Buy
Related Products
Product Details (53)
Description

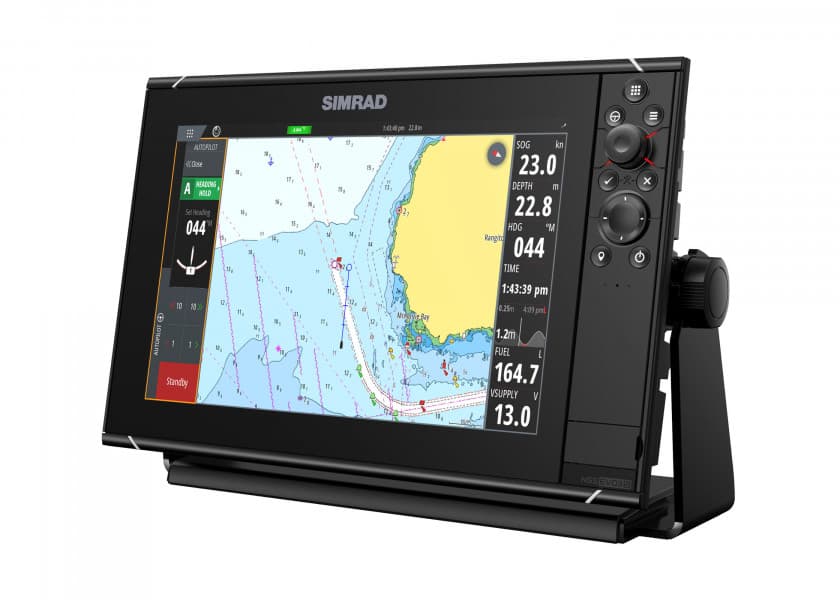

Simrad - NSS12 evo³S
Display size
12 Inch
Resolution
1280 x 800 px
Viewing angle
Downwards, Sidewards, Forwards
Screen brightness
1200 Nits
Operating mode
Touch screen, Keys
NMEA2000
Yes
NMEA0183
Optional
WiFi
Yes
Bluetooth
Yes
Ethernet / Network
Yes
Radar capable
Yes
Tablet control
Yes
Sonar module
Yes
Sonar type
CHIRP / Fishfinder, DownScan, SideScan, ForwardScan, Numerical depth
Compatible Navico transducers
P79, P319, HDI, HST-WSBL, TotalScan, ForwardScan, Active Imaging, StructureScan HD, StructureScan 3D
Nautical chart support
Yes
Sea Charts
C-MAP REVEAL, C-MAP DISCOVER, Navionics+, Navionics Platinum+, NV Charts
Installation width
335 mm
Installation height
197 mm
With transducer
No
Sonar view
Fish, Bottom structure
IP protection class
IPX7
For Bavaria
S 45
Waypoints and routes
6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
Cartography included
World base chart (no detailed charts)
Supported charts
Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital
Radar
Broadband Radar, Halo Pulse Compression Radar, HD Pulse Radar (optional)
External storage
2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
Internal storage
16 GB
GPS
internal, 10 Hz, 34 channels
AIS
with optional AIS transponder
Interface
Full touch screen (multi-touch ) and full keypad control
Multimedia
with optional SonicHub2 and FusionLink
Autopilot
Full auto pilot control and commissioning
Digital switching
C-Zone, Naviop
Ethernet
2x ethernet port
NMEA 2000
1 x NMEA 2000 Micro-C port
NMEA 0183
1x input, 1x output (with optional data cable SVB no: 17409)
Video
2 x composite (RCA connectors) video inputs. Optional video / data cable required.No HDMI port
Height
352
Width
225
Depth
98 (13.8
Mounting type
Bracket (supplied) or panel mount
Weight:
3.1 kg
Storage temperature range
-20°C to +60°C (4°F to 140°F)
Water rating
IPX6 and 7
Operating temperature
-15°C to +55°C (5° F to 131° F)
Recommended fuse
5A
Supply voltage
10 - 31.2 V DC
Display size and type
SolarMax HD® IPS 12" optically bonded TFT
Backlight
White
Languages
English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish
