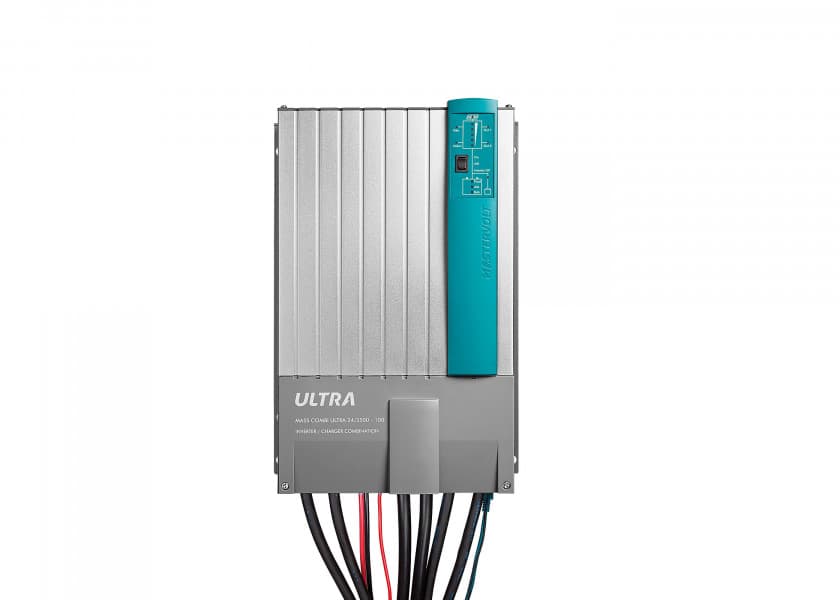

MASS COMBI ULTRA Charger / Inverter 24 V / 3500 W / 100 A
EAN/GTIN: 816882020421
OEM: 38023500
1 / 5
Main
Where to Buy
Related Products
Product Details (66)
Description
MASTERVOLT - MassCombi ULTRA 24/3500-100 (230V)
Device type
Charger/inverter combined
Max. charging current
100 A
Charging outputs
2
Battery nominal voltage
24 V
Network AC voltage
184 - 275 V
Battery type
Lead-Acid, AGM, Gel
Battery Capacity
200 - 600 Ah
Continous Power
3500 W
Peak power
7000 W
Input voltage
24 V
Output voltage
230 V
AC connection
Screw terminals
Temperature sensor can be connected
Yes
Power Lead
No
Integrated fan
Yes
Integrated charging cable
No
Optional remote display/operation
Yes
Width
318 mm
Height
472 mm
Depth
178 mm
Weight
15.3 kg
Protection from
Not specified
Nominal DC voltage
24V (9.5-16V)
Output frequency
50/60 Hz (± 0.005%), configurable
Output waveform
true sine, total harmonic distortion <1% under standard conditions
Continuous power at 40°C / 104°F, cos phi 1
3500 W
Max. peak load
7000W
Max. efficiency
≥ 92%
Max. ripple on DC (battery at full load)
<5%
No-load power consumption on DC (ON/inverter OFF/ OFF/energy-saving)
16 W / 4 W / 0 W / 7 W
Parallel connection
yes, up to 10
3-phase configuration
yes, up to 3x3
Synchronize with mains/generator
yes
Input voltage range
184-275 V
Max. input current
16 A
Max. charge current at 40°C / 104°F
100 A at 28.5 V, adjustable
Output voltage of the second charger
12V
Output current of the second charger
10 A
Temperature sensor battery
yes, included
Battery voltage sense
through MasterShunt, otherwise automatic compensation
AC input 1
50 A (generator only, switched)
AC input 2
30 A (mains only, switched)
AC output 1
67 a
AC output 2
50 A (switched)
AC input fuse
no
Transfer speed
seamless (<1 ms)
Transfer voltage range
184-275 V, adjustable
Transfer frequency range
35-68 Hz, adjustable
Max. PV peak power
500 Wp
Max. charge current
15 A at 28.5 V
MPP tracker
full power at 35-80V
Display/read-out
LED display
Approvals
CE, ABYC
Charge characteristic
3-step + (IUoUo, fully automatic)
Battery types
AGM / gel / MLI / flooded / traction / spiral
Recommended battery capacity
~ 200-600 Ah (based on gel batteries, other models may vary)
Ground relay
yes, configurable
Temperature range (ambient temp.)
-25°C to 60°C, derating > 40°C
Protection degree
IP23 (vertical mounting)
Safety class
IEC protection class I
Humidity protection
conformal coating, max. 95% relative humidity, non-condensing
Protections
over temperature, overload, short circuit, high/low battery voltage
Cooling
maintenance free vario fans
Power Assist
yes
MasterBus compatibility
yes
