i3L Satellite TV Antenna / Single LNB
EAN/GTIN: 00886310029845
OEM: B4-349Q
1 / 12
Main
Where to Buy
Related Products
Product Details (35)
Description

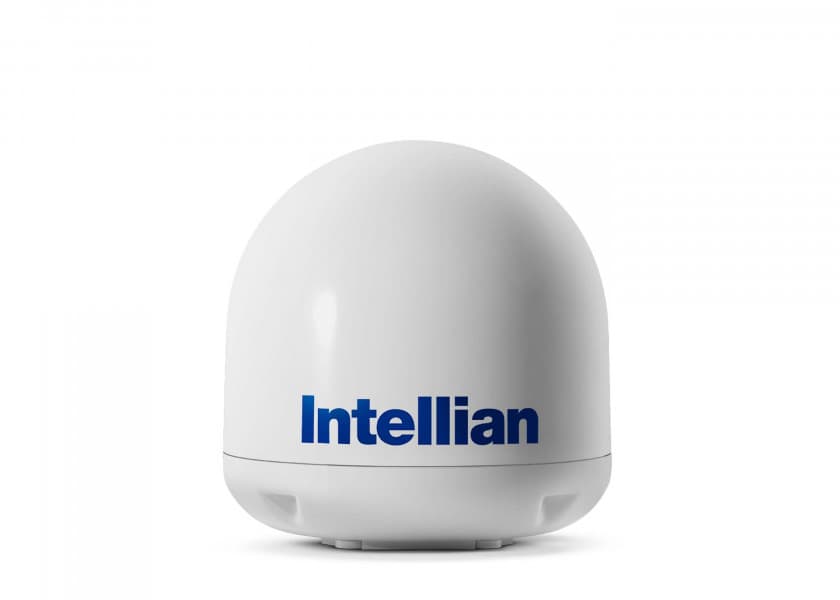

Intellian - i3L Satellite TV-Antenna / Single LNB
Operating voltage
12 V, 24 V
Dish diameter
37 cm
Footprint
Astra 1, Astra 2, Hotbird, Hispasat, Thor, Sirius
LNB
Single (1x)
Bluetooth
No
GPS
Yes
Outer-Ø
430 mm
Height
440 mm
Weight
9 kg
Connector
F Connector
Number of outputs
1
Material
Plastic
Colour
White
Cable length
15 m
Antenna type
SAT, SAT, SAT
Watts
30 W
Radome height
44 cm / 17.3"
Radome diameter
43 cm / 16.9"
Reflector diameter
37 cm / 14.6"
Operating temperature
-25 °C to +55 °C / -13 °F to +131 °F
Storage temperature
-40 °C to +80 °C / -40 °F to +176 °F
Water rating
IPX6
Compliance
CE/FCC
Receive frequency coverage
10.7 ~ 12.75 GHz
Minimum transmission power
50 dBW
Azimuth area
680°
Elevation area
10° to 80°
Ship movement
Roll +/- 25°, pitch +/- 15°
Rotation speed
60 °/second
Width
21.7
Depth
5.4 cm / 7
GPS Interface
Integrated (NMEA0183)
Power consumption (amps)
30 W / Max. 50 W
Included in delivery
Antenna, radome, reflector, LNBACU (control unit)PC programming software (CD)Installation and operation manualMounting templateQuick instructionsInstallation kit2x mounting brackets for ACU15 m RG6 coaxial cable from the antenna to the control unit3 m RG 6 coaxial cable10 m DC power cable1.8 m PC cable with serial connector (db9)Connectors & screws
