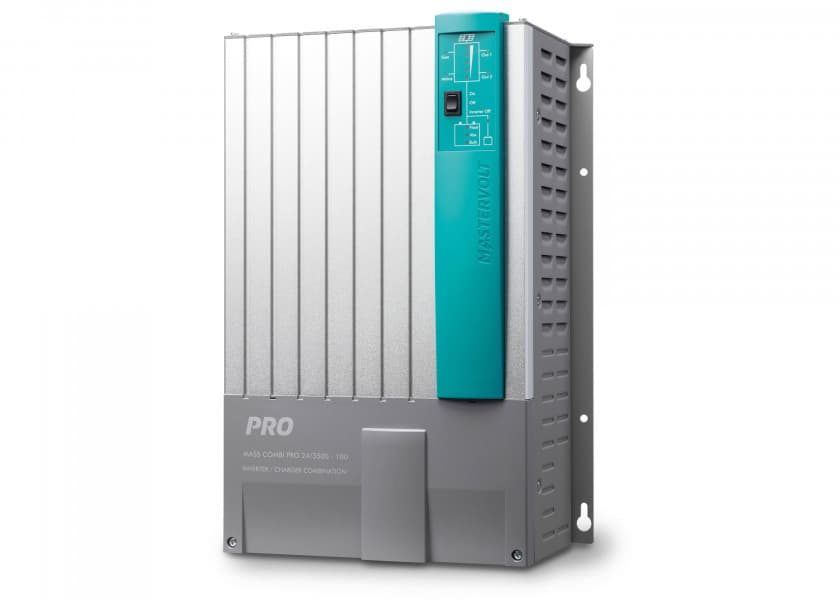

MASS COMBI PRO Charger / Inverter 24 V / 3500 W / 100 A
EAN/GTIN: 816882020407
OEM: 38523500
1 / 2
Main
Where to Buy
Related Products
Product Details (61)
Description
Mastervolt - MASS COMBI PRO 24/3500-100 (230V)
Device type
Charger/inverter combined
Max. charging current
100 A
Charging outputs
2
Battery nominal voltage
24 V
Network AC voltage
184 - 275 V
Battery type
Lead-Acid, AGM, Gel
Battery Capacity
200 - 600 Ah
Continous Power
3500 W
Peak power
7000 W
Input voltage
24 V
Output voltage
230 V
AC connection
Screw terminals
Temperature sensor can be connected
Yes
Power Lead
No
Integrated fan
Yes
Integrated charging cable
No
Optional remote display/operation
Yes
Width
318 mm
Height
472 mm
Depth
178 mm
Weight
15.3 kg
Protection from
Not specified
Rated voltage DC
24V (19-32V)
Output frequency
50/60 Hz (± 0.005%), configurable
Output waveform
pure sine, harmonic distortion <1% in standard conditions
Continuous power at 40°C/104°F, cos phi 1
3500 W
Peak Power
7000 W
Max. efficiency
≥ 92%
Max. permissible residual ripple at DC (battery)
<5%
No-load consumption on DC (ON/inverter OFF/OFF/energy-saving)
16 W / 4 W / 0 W / 7 W
Parallel connection
yes, up to 10 by default
3-phase configuration
yes, up to 3x3
Synchronize with voltage / generator
yes
Input voltage range
184-275 V
Max. input current
16 A
Max. charge current at 40°C/104°F
100 A at 28.5 V, adjustable
Temperature sensor battery
yes, included
Battery voltage sampling
through MasterShunt, otherwise automatic compensation
AC input 1
50 A (generator only, switched)
AC input 2
30 A (mains only, switched)
AC output 1
67 a
AC output 2
50 A (switched)
AC input fuse
no
Switching speed
seamless (<1 ms)
Range switching voltage
184-275 V, adjustable
Range switching frequency
35-68 Hz, adjustable
Display
LED display
Compliance
CE, ABYC
Charging characteristic
3-stage + (IUoUo, fully automatic)
Battery types
AGM / Gel / MLI / Wet / traction / Spiral
Recommended battery capacity
~ 200-600 Ah (based on gel batteries, other models may vary)
Grounding
yes, configurable
Temperature range (ambient temp.)
-25°C to 60°C, drop> 40 ° C
Degree of protection
IP23 (vertical mounting)
Safety class
IEC protection class I
Moisture protection
Protective coating, max. 95% relative humidity, non-condensing
Protective mechanisms
Excessive temperature, overload, short circuit, high/low battery voltage
Cooling
maintenance-free Vario fan
Power Assist
yes
MasterBus compatibility
yes
