CYCLONE PRO Open Array Radar / 121 cm
OEM: T70495
1 / 8
Main
Where to Buy
Related Products
Product Details (31)
Description

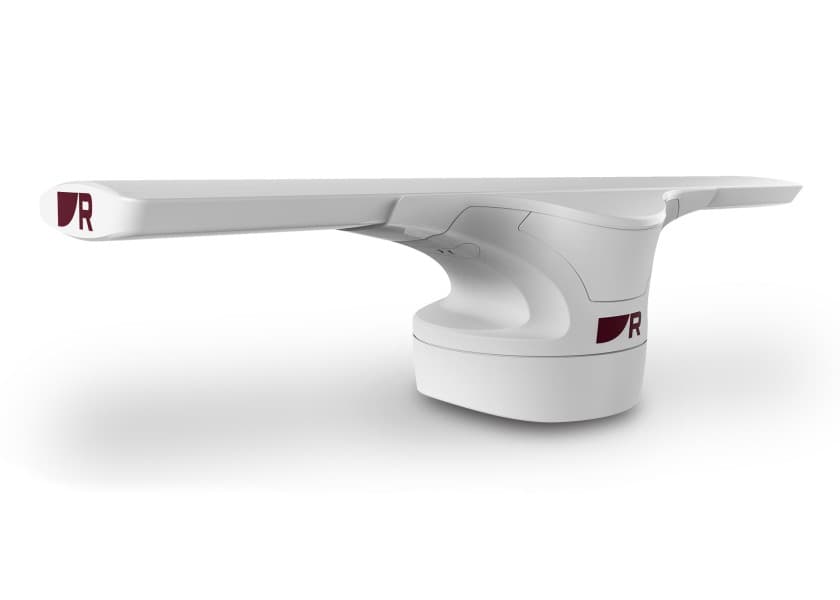

RAYMARINE - CYCLONE PRO open array radar / 121 cm
Antenna type
Slot antenna
Tx power
110 W
Max. range
96 nm
Beam width
1.99 °
Doppler mode
Yes
Rotational speed
60 RPM
WiFi
No
(M)ARPA
Yes
Weight
25 kg
Compatible displays
AXIOM+ RV, AXIOM Pro S, AXIOM Pro RVX, AXIOM 2 Pro S, AXIOM 2 Pro RVM
Operating voltage
10.2 - 31.2 V DC
Power consumption
95 W (typical)195 W (max.)
Operating temperature range
-25 to +55 °C
Antenna size
121 cm
Output power
110 W
Rotation speed
12 / 24 / 36 / 48 / 60 RPM
Beam width (vertical)
25°
Beam width (horizontal)
1.99°
Boot up time
40 seconds
Transmitter frequency
9370 / 9400 / 9430 MHz (selectable)
Receiver characteristic
Linear
Receiver noise
Less than 5 dB
Data connection
1x Raynet connector
Waterproof
IPX6
Max. wind speed
100 kts
Height
Length: 1336 Pedestal: 388
Width
360
Depth
335
Weight:
25 kg
Included
Open array radar, VCM100, 15 m power cable, 15 m data cable and mounting material
