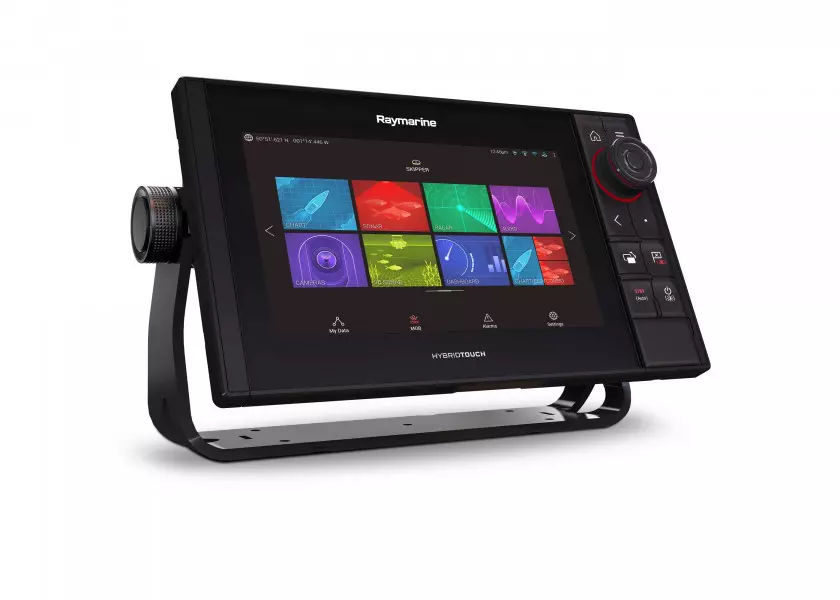

AXIOM 9 PRO-RVX / touch + buttons
EAN/GTIN: 00723193814994
OEM: E70371
1 / 10
Main
Where to Buy
Related Products
Product Details (63)
Description
Raymarine - AXIOM 9 PRO-RVX Multifunction Display
Display size
9 Inch
Resolution
1280 x 720 px
Viewing angle
Downwards, Sidewards
Screen brightness
1200 Nits
Operating mode
Touch screen, Keys
NMEA2000
Yes
NMEA0183
Yes
WiFi
Yes
Bluetooth
Yes
Ethernet / Network
Yes
Radar capable
Yes
Tablet control
Yes
Sonar module
Yes
Sonar type
CHIRP / Fishfinder, DownVision, SideVision, RealVision 3D, Numerical depth
Compatible Raymarine transducers
CPT-S CHIRP, CPT-100, CPT-110, CPT-120, RV-100, RV-200, RV-212, RV-220, RV-300, RV-312, RV-320, RV-400, RV-412, RV-420
Nautical chart support
Yes
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Installation width
284 mm
Installation height
158 mm
With transducer
No
Sonar view
Fish, Bottom structure, 3D bottom structure
IP protection class
IPX7
Display Size
9-inch IPS Optically Bonded LCD
Screen resolution
1280 x 720 WXGA
Display type
Multi-touch
Brightness
1,200 nits
Height
300
Width
174
Depth
65
Weight
1.52 kg
Installation
Top, Front, Bracket
Waterproof Rating
IPX6 / IPX7
Operating temperature
-25° C to +55° C
Storage temperature
-30° C to +70° C
Voltage
12 12V and 24V DC (8V to 32 DC)
Power Consumption (full brightness)
~20W
GNSS / GPS
Built-in GNSS receiver: GPS / GLONASS / Galileo / Beidou - 10 Hz 72 channels | External GPS antenna: GA150 (A80288)
Sonar Type - Built-in
Realvision 3D + 1 kW-Sonar
Sonar Connections
25-poliger Real Vision™-Stecker + 11-poliger Stecker 1 kW
Sonar Depth
CHIRP sonar = 900 feet (274 m) Down Vision™ = 600 feet (183 m) | Side Vision™ = 300 feet (91 m) | Real Vision™ 3D = 300ft (91m) - 1kW = 5,000ft (1,500m)
Externes Sonar
Yes - CP100, CP200, CP370, CP470, CP570 via RayNet
Radar
Yes - Quantum, Digital, HD Color and Super HD Color Radars
AIS
Yes - NMEA2000 compatible
Autopilot operation
Yes - Evolution autopilot
Thermal Night Vision
Yes - IP or analog
Video / Camera
1 x Analogue input (BNC) Up to 10 IP cameras
Weather
GRIB View - Free GRIB Viewer and Theyr Ltd Subscription | SiriusXM (only in North America)
Audio
NMEA2000 / Bluetooth / SiriusXM audio
Digital Switching
Yes - Compatible with Empirbus and C-Zone
Remote control
RMK-10 (A80438) and RCU-3 (E62351) (optional)
Ethernet
2 x 10/100 Mbps network (RayNet)
SeaTalkNG
Requires devicenet adapter cable with jack (A06075 1 m adapter included)
USB
1 x USB Micro AB connector (back - 1.0A charge current, external storage device or RCR-SD / USB accessory (A80440))
WLAN
Yes
BlueTooth
Bluetooth 4.0 + Low Energy + Performance Class 1.5
Cartography
Lighthouse, Navionics, * C-MAP Essentials and * C-MAP 4D MAX + (* C-MAP map compatibility will be available in future Lighthouse 3 software updates)
Waypoints / Routes / Tracks
10,000 waypoints / 200 waypoint groups / 150 routes - max. 250 waypoints / 16 tracks - max. 10,000 track points
Internal storage
16 16 GB solid state
External storage
2 x Micro SD slot (front) - Micro SDHC, max. 32 GB NTFS or FAT32 format / Micro SDXC, max. 2 TB NTFS or FAT32 format (native micro SD format of external FAT storage media must be reformatted to NTFS or FAT32)
Languages
24
Compliance
NMEA 2000 certification | Europe: 1999/5 / EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR Part 15 | Industry Canada RSS210
Included in delivery
A: MFD display AXIOM 9 PRO-S, B: RayNet on RayNet cable, 2 m, C: mounting bracket cover, D: thumbscrews (2 pcs.), E: mounting bracket, F: sun cover, G: voltage / video and NMEA0183 cables - straight male, 1.5 m, H: SeaTalkNG adapter to NMEA2000 (female), Device-Net, I: gasket for recessed mounting, J: side panels, Home and Start button, K: mounting bolts ( 4 pcs.) As well as a quick guide, a warranty card, Raymarine window stickers
