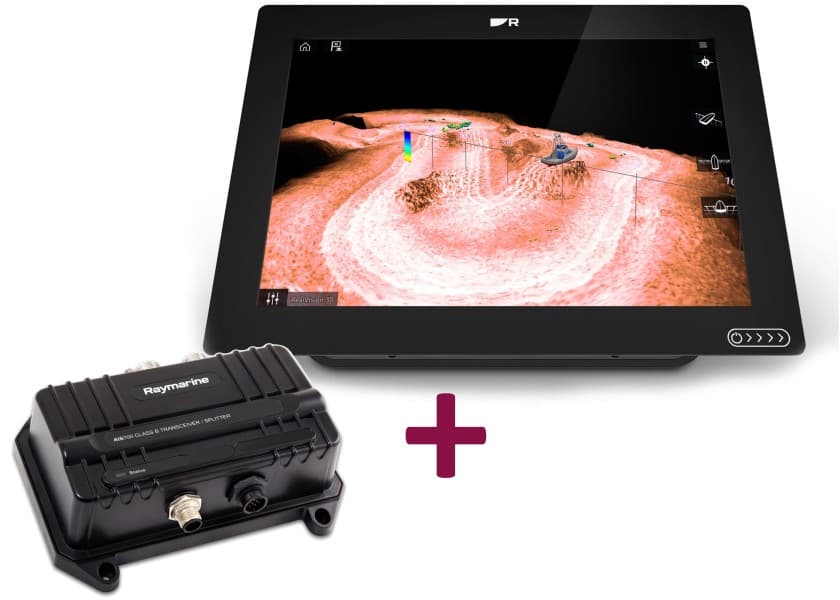

RAYMARINE AXIOM+ 12" RV with AIS700
Display size
12 Inch
Resolution
1280 x 800 px
Viewing angle
Downwards, Sidewards
Screen brightness
1800 Nits
Operating mode
Touch screen
NMEA2000
Yes
NMEA0183
No
WiFi
Yes
Bluetooth
Yes
Ethernet / Network
Yes
Radar capable
Yes
Tablet control
Yes
Sonar module
Yes
Sonar type
CHIRP / Fishfinder, DownVision, SideVision, RealVision 3D, Numerical depth
Compatible Raymarine transducers
CPT-S CHIRP, CPT-100, CPT-110, CPT-120, RV-100, RV-200, RV-212, RV-220, RV-300, RV-312, RV-320, RV-400, RV-412, RV-420
Nautical chart support
Yes
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Installation width
302 mm
Installation height
205 mm
With transducer
No
Sonar view
Fish, Bottom structure, 3D bottom structure
IP protection class
IPX7
Display type
Multitouch with HydroTough (resistant coating)
Brightness
1800 nits
Voltage
12 V DC (8 - 16 V DC)
Power consumption
19.96 W
Ethernet
Yes, 1x port (RayNet)
SeaTalkNG
Adapter cable necessary
USB
1x USB mircoAB
GPS
Integrated (10 Hz, 28 channel)GPS/GLONASS/Galileo/Beidou
Sonar
Integrated
Sonar types
High CHIRP, DownVision, SideVision and RealVision 3D
Sonar connection
25 pin
Radar
Compatible with Quantum, Digital, HD Color/Super HD Colour and Magnum radar antennas
AIS
Yes, via NMEA2000
Chart compatibility
Navionics, C-MAP and Lighthouse
Card slot
1x
Autopilot operation
Evolution autopilot
Thermal image
FLIR AX8, M232, M300 series, M400, M500
Video/camera
Compatible with CAM210IP and CAM220IP (max. 10 cameras)
Operating temperature
-25 to +55 °C
Storage temperature
-30 to +70 °C
Waterproof
IPX6 / IPX7
Height
314
Width
217
Depth
77
Weight:
2.72 kg
