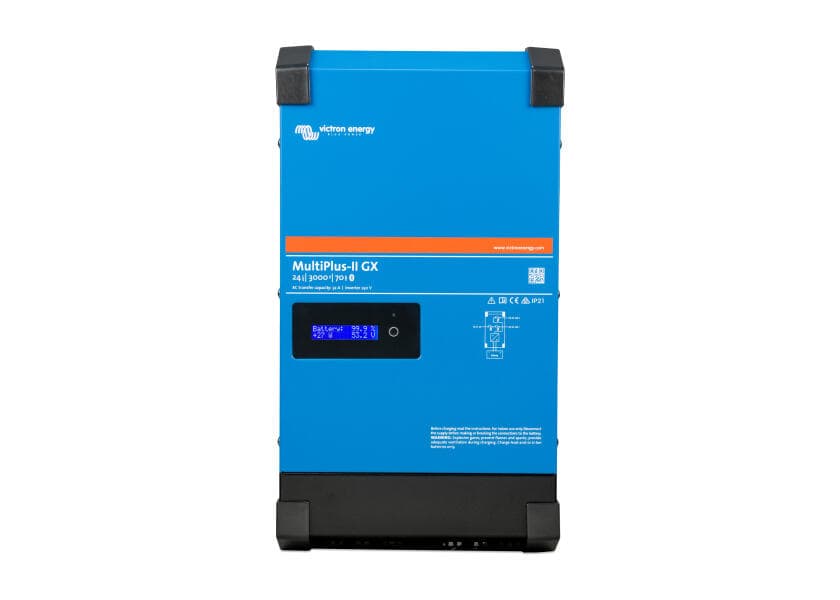

MultiPlus-II GX Inverter/Charger 24 V / 3000 VA / 70 A
EAN/GTIN: 871907605169
OEM: PMP242306000
1 / 6
Main
Where to Buy
Related Products
Product Details (55)
Description
VICTRON - MultiPlus-II GX 24/3000/70-32
Device type
Charger/inverter combined
Max. charging current
70 A
Charging outputs
1
Battery nominal voltage
24 V
Network AC voltage
187 - 265 V
Battery type
Lead-Acid, AGM, Gel, Lithium (LifePO4)
Battery Capacity
200 - 700 Ah
Continous Power
2400 W
Peak power
5500 W
Input voltage
19 - 33 V
Output voltage
230 V
AC connection
Screw terminals
Temperature sensor can be connected
Yes
Power Lead
No
Integrated fan
Yes
Integrated charging cable
No
Optional remote display/operation
Yes
Width
275 mm
Height
506 mm
Depth
147 mm
Weight
19 kg
Data protocol
VE.Bus
Protection from
Not specified
PowerControl / PowerAssist
Yes
Transfer switch
32 A
Max. AC input current
32 A
Auxiliary output
Yes (32 A)
External AC current sensor (optional)
50 A
Interfaces
VE.Bus, VE.Direct, WLAN, USB, Ethernet, BMS-Can
Programmable relay
Yes
VE.Bus communication port
For parallel and three phase operation, remote monitoring and system integration
General purpose com. port
Yes (2x)
Operating temperature range
-40 to +65°C (fan assisted cooling)
Humidity (non-condensing)
max. 95 %
DC Input voltage range
24 V (19 - 33 V)
Output
Output voltage: 230 VAC (+/- 2%) Frequency: 50 Hz (+/- 1%) adjustable to 60 Hz
Cont. output power
3000 VA (@ 25 °C) / 2400 W (@ 25 °C) / 2200 W (@ 40 °C) / 1700 W (@ 65 °C)
Max. apparent feed-in power
3000 VA
Peak performance
5500 W
Max. Efficiency
94 %
Zero-load power
13 W
Zero load power (AES mode)
9 W
Zero load power (Search mode)
3 W
AC input
Input voltage range: 187 - 265 VAC / Input frequency: 45 - 65 Hz
Charge voltage (absorption)
28.8 V
Charge voltage (float)
27.6 V
Storage mode
26.4 V
Max. battery charge current
70 A
Battery temperature sensor
Yes
Material & colour
Steel / blue RAL 5012
Protection category
IP22
Battery connection
M8 bolts
230 V AC connection
Screw terminals 13 mm² (6 AWG)
Weight:
19 kg
