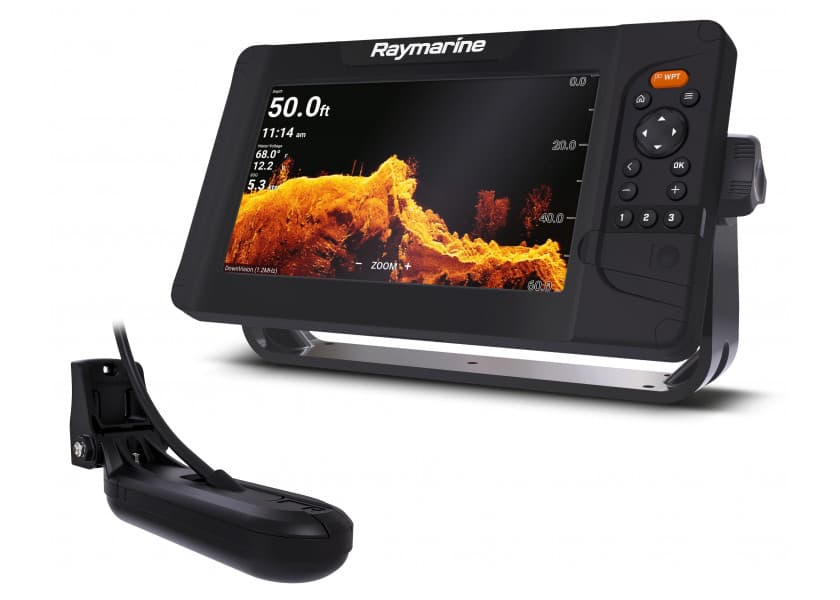

Element 9 HV / buttons / with Hypervision sonar and HV-100 transducer
EAN/GTIN: 00723193841297
OEM: E70645-05
1 / 10
Main
Where to Buy
Related Products
Product Details (43)
Description
RAYMARINE Element 9 multifunction display / with Hypervision Chirp Sonar and HV-100
Display size
9 Inch
Resolution
800 x 480 px
Operating mode
Keys
With transducer
Yes
Viewing angle
Downwards, Sidewards
Screen brightness
1500 Nits
NMEA0183
No
NMEA2000
Yes
Ethernet / Network
No
WiFi
Yes
Bluetooth
Yes
Radar capable
Yes (only via WiFi)
Tablet control
No
Sonar module
Yes
Sonar type
CHIRP / Fishfinder, DownVision, SideVision, RealVision 3D, HyperVision 3D, Numerical depth
Maximum depth
274 m
Nautical chart support
Yes
Sea Charts
C-MAP 4D, Navionics+, Navionics Platinum+, LightHouse Charts
Installation width
269 mm
Installation height
145 mm
Sonar view
Fish, Bottom structure, 3D bottom structure
IP protection class
IPX7
Compatible Raymarine transducers
CPT-S CHIRP, CPT-100, CPT-110, CPT-120, HV-100, HV-300
Screen size
9"
Touchscreen
Non-Touch
Screen resolution
800x480
Brightness
1500 Nits
GPS
Integrated GPS / GNSS receiver: GPS / GLONASS
Sonar
CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), Realvision 3D (Standard and Hyper)
Sonar connection
15-pin HyperVision ™ connector
Sonar depth
CHIRP sonar = 274 m (900 feet)DownVision ™ Standard = 183m (600ft) | DownVision ™ Hyper = 30m (100ft)SideVision ™ Standard = 91 m (300 feet) | SideVision ™ Hyper = 30m (100ft)RealVision ™ 3D Standard = 91 m (300 feet) | RealVision ™ 3D Hyper = 30m (100ft)
Supported nautical charts
Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX + and all charts listed on the Raymarine Chart Store.
Waypoints routes
10,000 waypoints / 200 waypoints groups / 150 routes with max 250 waypoints / 16 tracks - 10,000 track points per track
Interfaces
NMEA2000-Limited (engine, tank sensor & compass data input, data output: GPS for radio), Wi-Fi, BluetoothFor NMEA2000 GPS and AIS data update free of charge to the current Element Lighthouse Version 3.9. More information can be found on the Raymarine support page.
Height
287
Width
161
Depth
62
nominal voltage
12V DC (8V - 16V DC)
current consumption
20 W
water resistance
IPX6 and IPX7
operating temperatur
-25 ° C to + 55 ° C
delivery
Mounting bracket with fixings, surface mounting kit with fixings, sun shade, 1.5 m power / NMEA2000 cable, documentation, HV-100 transducer with 6 m cable transom mount with mounting parts, P-clips with mounting screws, cover plate with mounting parts
