AXIOM 2 PRO 12 RVM
EAN/GTIN: 00723193843543
OEM: E70656
1 / 8
Main
Where to Buy
Related Products
Product Details (51)
Description

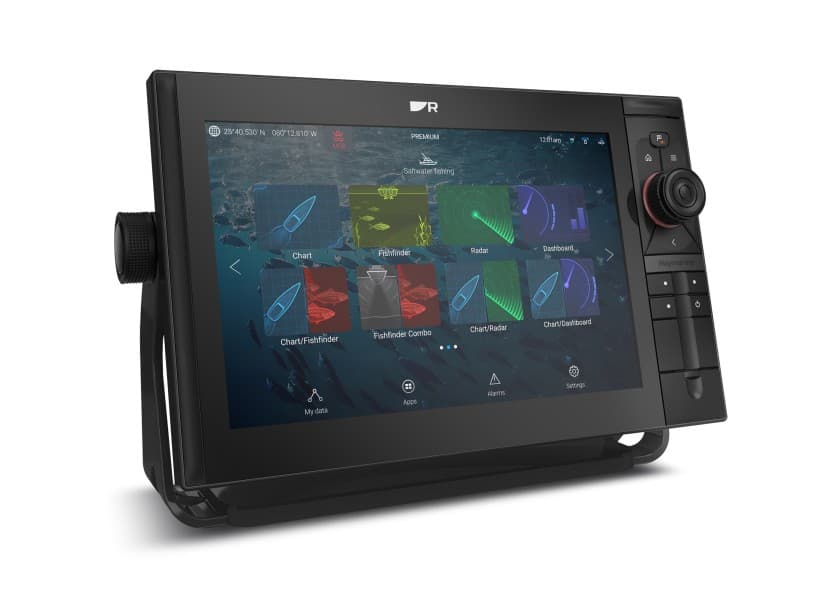

RAYMARINE - AXIOM 2 PRO 12 RVM
Display size
12 Inch
Resolution
1280 x 800 px
Viewing angle
Downwards, Sidewards
Screen brightness
1200 Nits
Operating mode
Touch screen, Keys
NMEA2000
Yes
NMEA0183
Optional
WiFi
Yes
Bluetooth
Yes
Ethernet / Network
Yes
Radar capable
Yes
Tablet control
Yes
Sonar module
Yes
Sonar type
CHIRP / Fishfinder, DownVision, SideVision, Numerical depth, RealVision MAX 3D
Compatible Raymarine transducers
CPT-S CHIRP, CPT-100, CPT-110, CPT-120, RV-100, RV-200, RV-212, RV-220, RV-300, RV-312, RV-320, RV-400, RV-412, RV-420, RVM-400, RVM-100
Nautical chart support
Yes
Sea Charts
Navionics+, Navionics Platinum+, LightHouse Charts
Installation width
358.1 mm
Installation height
222.8 mm
With transducer
No
Display Size
12.0 inch / 24-bit IPS display
Screen resolution
1280 x 800 WXGA
Brightness
1,200 nits
Aspect ratio
16:9
Display type
Multi-touch
Height
246.1
Width
388.5
Depth
233.4 (bracket mounting incl. cable)222.8
Waterproof Rating
IPX6 / IPX7
Operating temperature
-25° C to +55° C
Storage temperature
-30° C to +70° C
Voltage
8 to 32 V DC (12/24 V DC)
Power consumption
approx. 29.9 W @ 12 V DC
Built-in GPS receiver
GPS / GLONASS / Galileo / Beidou
External GPS antenna
1x TNC plug connection
Sonar Type - Built-in
1 kW CHIRP / DownVision / SideVision / RealVision 3D
Radar
Yes - Quantum, Digital, HD Color and Super HD Color Radars
AIS
Yes - NMEA2000 compatible
Autopilot operation
Yes - Evolution autopilot
Thermal Night Vision
Yes - IP or analog
Analogue video connections
BCA and RCA connections via power cable
Digital video and audio
HDMI output Micro connector type D
Ethernet
2x Raynet connections
SeaTalkNG
Yes - adapter cable necessary (included in delivery)
USB
1x USB Typ Micro B
WLAN
Yes - Multiband (2.4 GHz and 5 GHz 802.11b/g/n)
Cartography
Navionics+, Navionics Platinum+, LightHouse Charts
Waypoints / Routes / Tracks
10,000 waypoints / 200 waypoint groups / 150 routes - max. 250 waypoints / 16 tracks - max. 10,000 track points
Internal storage
64 GB
External storage
2 x micro SD slots (front)
