i5 Satellite TV-Antenna / Twin LNB

OEM: B4-519Q

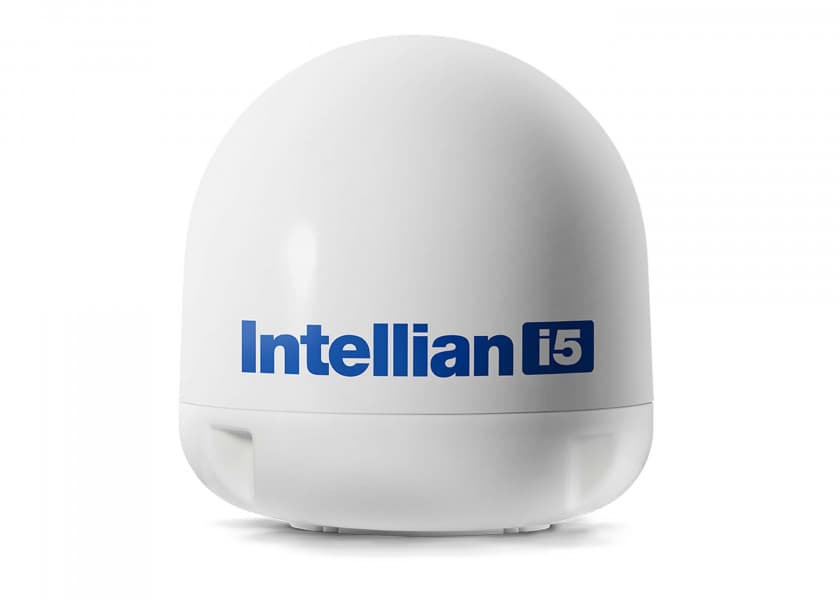

INTELLIAN i5 Satellite TV-Antenna Twin LNB Image 1 of 5
1 / 5
Main

Where to Buy

SVB24

Price not available

Visit store ↗

Related Products

Series 2984 Anchor Light

HELLA MARINE

View product

Series 34 Port Light

AQUA SIGNAL

View product

LED Navigation Light Set

MARINE TECH

View product

Product Details (35)

Description
Intellian - i5 Satellite TV-Antenna / Twin LNB
Operating voltage
12 V, 24 V
Dish diameter
53.5 cm
LNB
Twin (2x)
Bluetooth
No
GPS
Yes
Outer-Ø
610 mm
Height
627 mm
Weight
17.3 kg
Connector
F Connector
Number of outputs
2
Material
Plastic
Colour
White
Cable length
15 m
Antenna type
SAT, SAT, SAT
Watts
40 W
Radome height
62.7 cm / 24.7"
Radome diameter
61 cm / 24"
Reflector diameter
53.5 cm / 21"
Weight:
17.3 kg / 38 lbs
Operating temperature
-25 °C to +55 °C / -13 °F to +131 °F
Storage temperature
-40 °C to +80 °C / -40 °F to +176 °F
Water rating
IPX6
Compliance
CE/FCC
Receive frequency coverage
10.7 ~ 12.75 GHz
Minimum transmission power
47 dBW
Azimuth area
680°
Elevation area
0° to 90°
Ship movement
Roll +/- 25°, pitch +/- 15°
Rotation speed
50° /second
Width
21.7
Depth
5.4 cm / 7
GPS Interface
Integrated (NMEA0183)
Power consumption (amps)
30 W / Max. 50 W
Included in delivery
Antenna, radome, reflector, LNBACU (control unit)PC programming software (CD)Installation and operation manualMounting templateQuick instructionsInstallation kit2x mounting brackets for ACU15 m RG6 coaxial cable from the antenna to the control unit3 m RG 6 coaxial cable10 m DC power cable1.8 m PC cable with serial connectorConnectors & screws
